Hybrid Inverter
Key Features
Single & Three-Phase — 6kW to 15kW Five models covering residential single-phase and three-phase grid connections on one unified 48V battery platform.
High Efficiency — Up to 98% PV / 97.5% Euro Efficiency H8K reaches 98% max PV efficiency; all EU3 models achieve 97.5% Euro efficiency — minimizing energy losses throughout the solar-to-load chain.

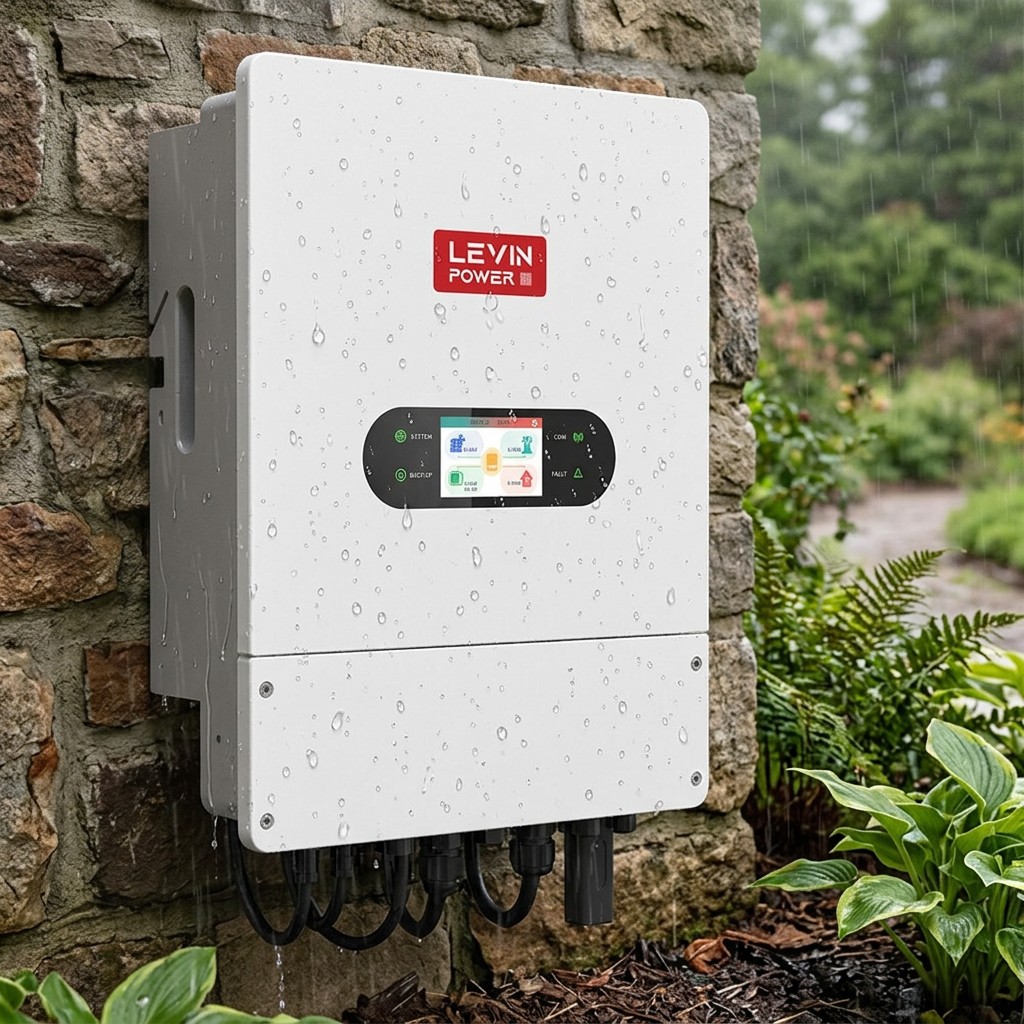

IP66 + Smart Fan Cooling IP66 outdoor-rated enclosure with intelligent fan cooling. EU3 models support up to 4,000m altitude (derating above 2,000m); operating range -25°C to +60°C.
Comprehensive Integrated Protection PV reverse polarity, insulation resistance detection, residual current monitoring, output overcurrent/short circuit/overvoltage protection — all integrated without external devices.
99.90% MPPT Efficiency & Up to 98.00% Max Inverter Efficiency Industry-leading MPPT tracking efficiency of 99.90% combined with up to 98.00% max inverter efficiency (EU3 series) and 97.50% European efficiency (H16K) minimizes energy losses across the entire solar-to-load chain.
Multi-Protocol Monitoring RS485 / CAN standard; optional WiFi / Bluetooth / 4G / GPRS for remote monitoring and EMS integration.
Proven Installations
Common Questions
| EU1 (H6K / H8K) | EU3 (H10K / H12K / H15K) | |
|---|---|---|
| Phase | Single-phase, 220/230V | Three-phase, 230/400V |
| Power | 6kW / 8kW | 10kW / 12kW / 15kW |
| Battery Voltage | 40–60V (H6K) / 48V (H8K) | 48V |
| Max PV Input | 500V | 1,000V |
| Best For | Residential | Large residential / small C&I |
Yes. All models deliver full rated backup power with >200% peak overload capacity for 15 seconds, enabling motor starts and high-inrush loads during grid outages.
Both Lithium-ion and Lead-acid batteries are supported. The H6K includes a self-adaptive BMS for automatic battery management strategy adjustment.
CE / IEC / EN50549. EU3 models additionally cover IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtlinie R25, UNE217001/2, Ordinance No.140 — suitable for most European and South African grid connections.
