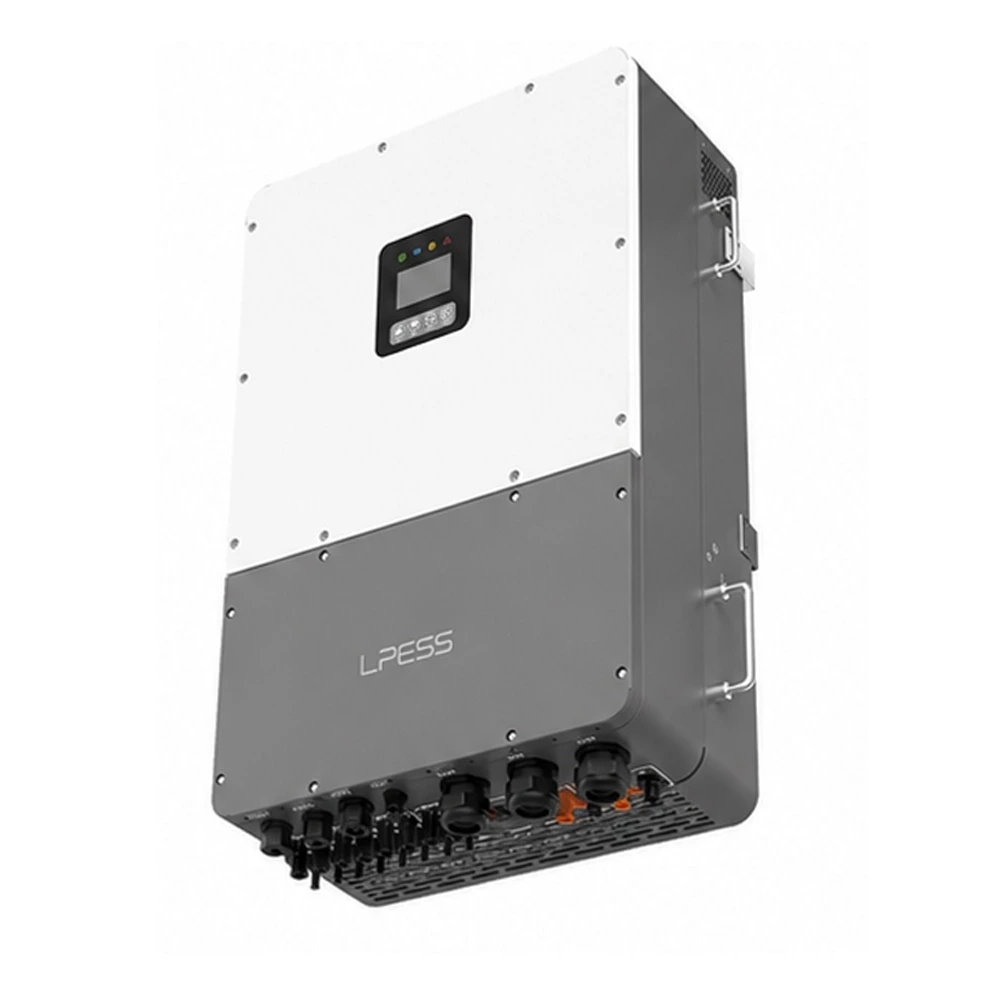

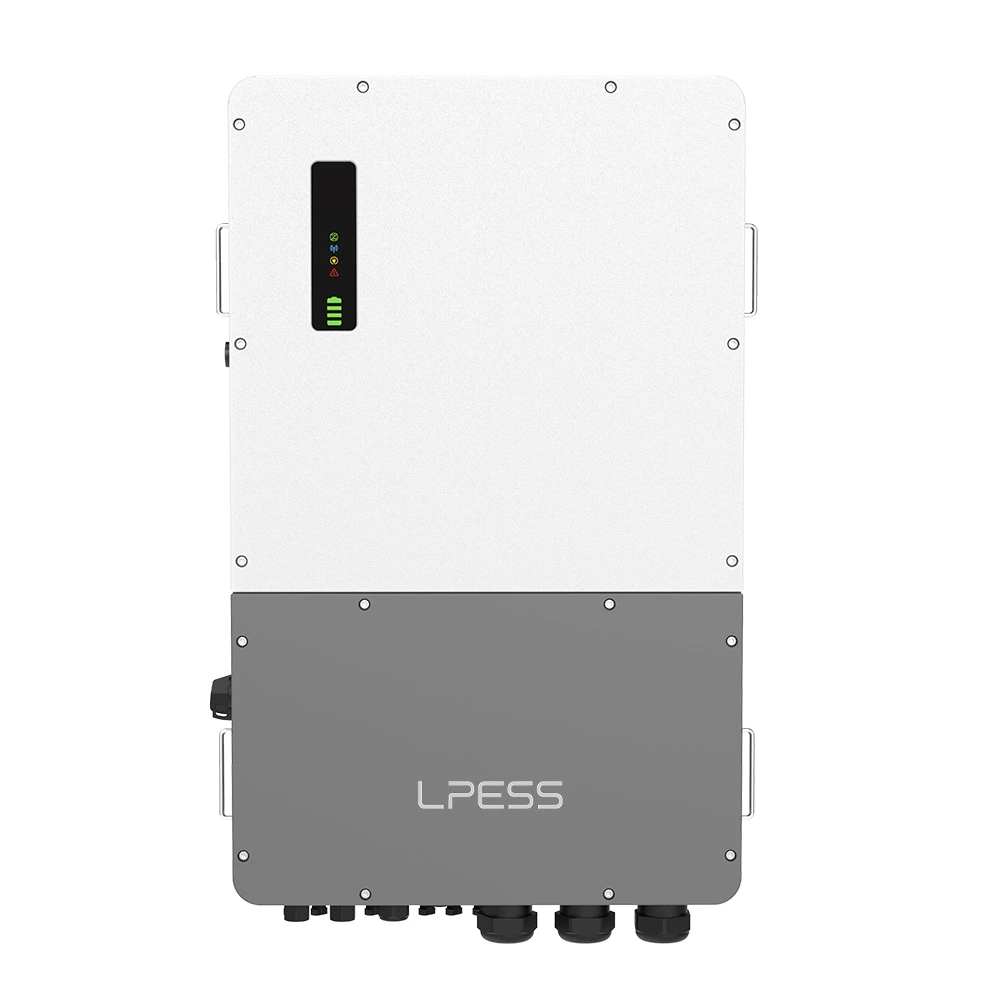

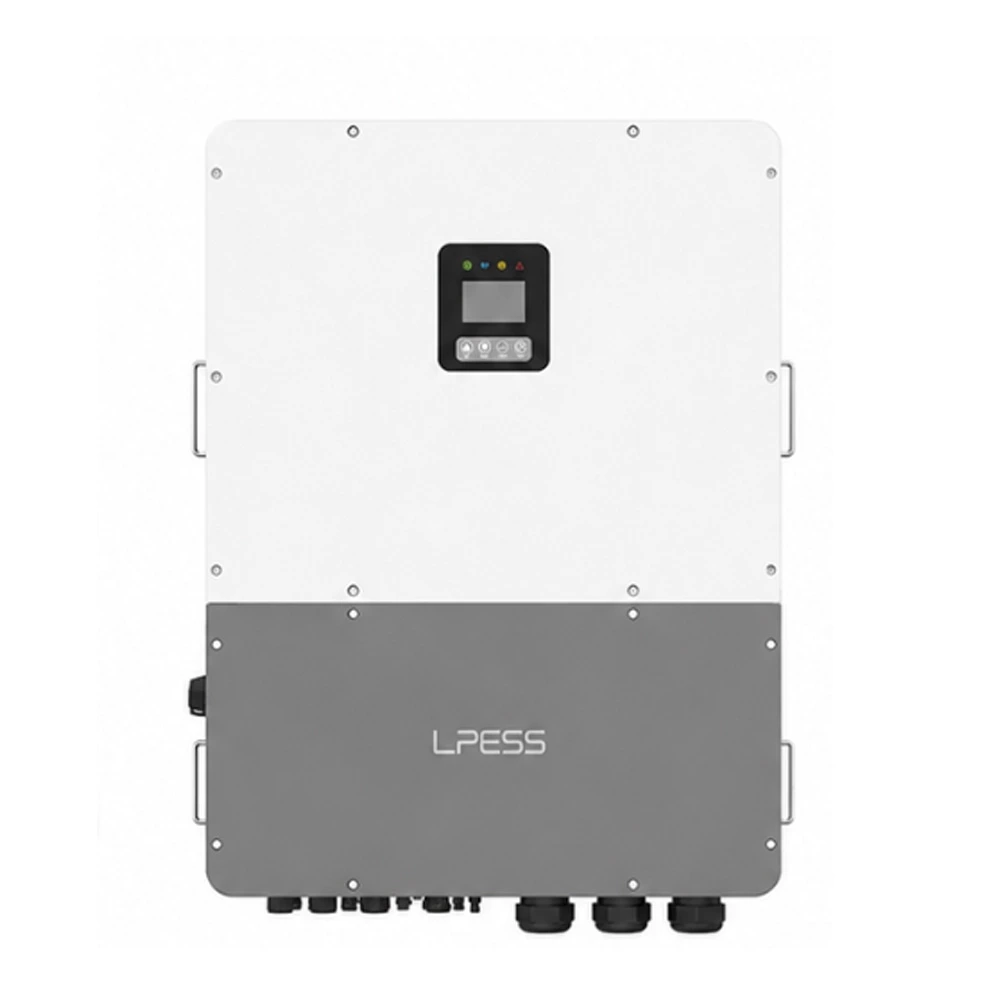

Hybrid Inverter
Key Features
High-Voltage Battery Architecture Supports 135–850Vdc battery range, compatible with high-voltage LiFePO4 stacks. Eliminates parallel battery string complexity for large-scale commercial and industrial ESS.
4-MPPT — Up to 120kW PV Per Unit Four independent MPPTs with 2+2+2+2 string configuration and 1,000Vdc max input. 99.90% MPPT efficiency and 98.50% max inverter efficiency across the full operating range.
Scalable Parallel — Up to 8 Units Parallel up to 8 inverters for installations from 30kW to 480kW with synchronized three-phase 380/400V output and shared EPS capability.
Full-Power EPS + IP66 Outdoor Ready EPS delivers rated power (30kW or 60kW) at 380/400V three-phase with 150% overload for 0.2s. IP66 enclosure operates from -25°C to +60°C for outdoor installation in all European climates.
Proven Installations
Common Questions
The HVPS series operates on a high-voltage battery bus — 150Vdc (H30K) and 300Vdc (H60K), with a wide operating range of 135–850Vdc. This eliminates the need for multiple low-voltage battery strings in series, reducing wiring complexity and improving system efficiency at large scale.
Yes. Both models support parallel operation of up to 8 units — enabling up to 240kW (8× H30K) or 480kW (8× H60K) without additional control hardware. Units communicate via CAN bus for synchronized output.
Each unit has 4 independent MPPTs (2+2+2+2 string config), accepting up to 60kW (H30K) or 120kW (H60K) PV input at up to 1,000Vdc. MPPT range is 150–850Vdc with 99.90% tracking efficiency.
CE, IEC 62109-1/2, IEC 62477-1, EN 50549-1 & -10. Both models carry a 5-year warranty and IP66 outdoor protection rating.
