Hybrid Inverter
Key Features
True Hybrid — Grid, Solar & Battery in One Unit Manages solar PV, battery storage, grid, and generator input simultaneously. Intelligent energy dispatch prioritizes self-consumption, reduces electricity bills, and ensures backup power during outages — all from a single inverter.
3-MPPT Triple-String Architecture Three independent MPPT channels (2+2+2 string configuration, up to 550Vdc, 99.50% efficiency) maximize solar harvest on complex multi-orientation or partially shaded rooftops without compromise. 3-MPPT Triple-String Architecture Three independent MPPT channels (2+2+2 string configuration, up to 550Vdc, 99.50% efficiency) maximize solar harvest on complex multi-orientation or partially shaded rooftops without compromise.
<10ms EPS Switching — Near-Seamless Backup Emergency Power Supply mode activates within 10ms of grid failure with 200% off-grid overload capacity for 10 seconds — fast enough to keep sensitive electronics, refrigerators, and motors running without restart.
NEMA 4X or IP66 Outdoor-Rated Enclosure Available in NEMA 4X (NAS) or IP66 (SAS) rated enclosures, both designed for outdoor wall-mount installation and resistant to rain, dust, UV, and corrosive environments.
5-Year Warranty & Full US Certifications 5-year product warranty backed by UL1741, HECO SRD 2.0, CEC (NAS) or UL1741:2021 Ed.3, CFR47, IEC61683 (SAS) — fully compliant with US utility interconnection requirements and incentive programs.
Smart Monitoring via App, Wi-Fi & Multiple Interfaces Built-in RS485, Wi-Fi, and CAN with optional BT, LAN, 4G, and Meter interfaces. Monitor real-time generation, consumption, battery state, and grid interaction from the Levin Power app or any SCADA-compatible platform.
Proven Installations
Common Questions
Both versions share the same 12kW/15kW power output and core specs, but differ in enclosure protection and certification scope:
| NAS Version | SAS Version | |
|---|---|---|
| Protection | NEMA 4X | IP66 |
| Key Certifications | UL1741, UL1547, UL1699B, HECO SRD 2.0, CEC Efficiency | UL1741:2021 Ed.3+R (Oct 2024), CFR 47, IEC61683 |
| Best For | Hawaii / California (HECO & CEC grid programs) | General US market, latest UL1741 Ed.3 compliance |

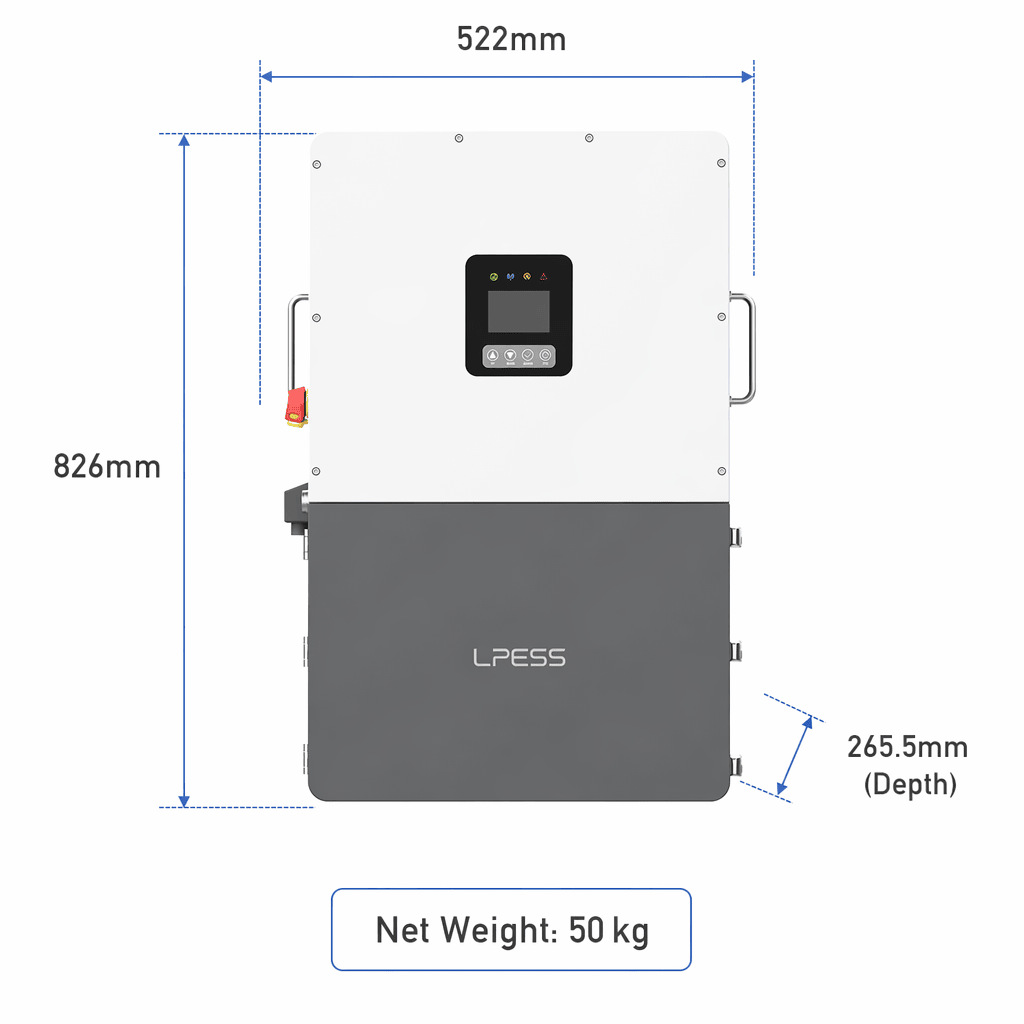

| Weight | 50 kg | 45 kg |
Choose NAS if your project requires HECO SRD 2.0 or California CEC compliance. Choose SAS if you need the latest UL1741:2021 Ed.3 certification for broader US utility interconnection.
: Yes. The H-series is a true hybrid inverter supporting three operating modes:
The EPS output delivers the full rated power (12kW or 15kW) with 200% overload capacity for 10 seconds, sufficient to start motor loads and HVAC equipment during outages.
All four models feature 3 MPPT trackers with a 2+2+2 string configuration, accepting up to:
Three independent MPPTs allow optimal harvest from panels on different roof orientations or with partial shading, maximizing annual yield on complex rooftop installations.
All H-series models carry a 5-year warranty. For US grid interconnection, the certification coverage is:
Both versions include insulation detection, leakage current detection, and anti-islanding protection as standard.
