Hybrid Inverter
Key Features
True Hybrid — Grid, Solar & Battery in One Unit Manages grid, solar PV, and battery storage simultaneously. Intelligent energy dispatch maximizes self-consumption, reduces grid import costs, and ensures seamless backup power during outages.
High-Power PV Input — Up to 1,000Vdc The EU3 three-phase series accepts up to 1,000Vdc PV open-circuit voltage with a wide MPPT range of 150–850Vdc, enabling long high-voltage string configurations for large commercial rooftop and ground-mount arrays.
Full-Power EPS Backup with High Overload Capacity EPS mode activates automatically on grid failure, delivering the full rated output power with up to 200% overload capacity for 10 seconds — sufficient to start motors, HVAC systems, and other high-inrush equipment.
IP66 Outdoor-Rated — Built for European Climates IP66-certified enclosure withstands direct water jets, heavy rain, dust, and UV exposure. Operates from -25°C to +60°C, suitable for outdoor wall-mount installation in Northern European winters and Mediterranean summers.
99.90% MPPT Efficiency & Up to 98.00% Max Inverter Efficiency Industry-leading MPPT tracking efficiency of 99.90% combined with up to 98.00% max inverter efficiency (EU3 series) and 97.50% European efficiency (H16K) minimizes energy losses across the entire solar-to-load chain.
5-Year Warranty & Multi-Market Certifications 5-year product warranty backed by CE, IEC62109, IEC62477, EN50549 and additional market-specific standards (NRS, ABNT NBR, IEC61727). Covers EU, South Africa, Brazil, and other IEC-aligned markets.
Proven Installations
Common Questions
The two sub-series target different installation types and grid connections:
| EU3 Series (H15K–H24K) | EU1 Series (H16K) | |
|---|---|---|
| Phase | Three-phase, 380/400V, 3W+N+PE | Single-phase, 220/230/240V, L+N+PE |
| Best For | Commercial, light industrial, three-phase grid sites | Residential, large villas, single-phase grid |
| Max PV Input | Up to 48kW / 1,000Vdc | 22.5kW / 550Vdc |
| MPPT Config | 2 MPPTs (2+2 strings) | 3 MPPTs (2+2+2 strings) |
| Switching Time | <20ms | <10ms |
Choose EU3 for three-phase commercial premises, farms, or industrial sites. Choose EU1 for large residential or single-phase utility connections requiring up to 16kW hybrid output.
Yes. All models include a full EPS (Emergency Power Supply) function that activates automatically on grid failure, delivering the full rated power as backup:
Both series maintain MPPT charging and battery management during EPS mode, keeping the system self-sufficient as long as solar and battery are available.

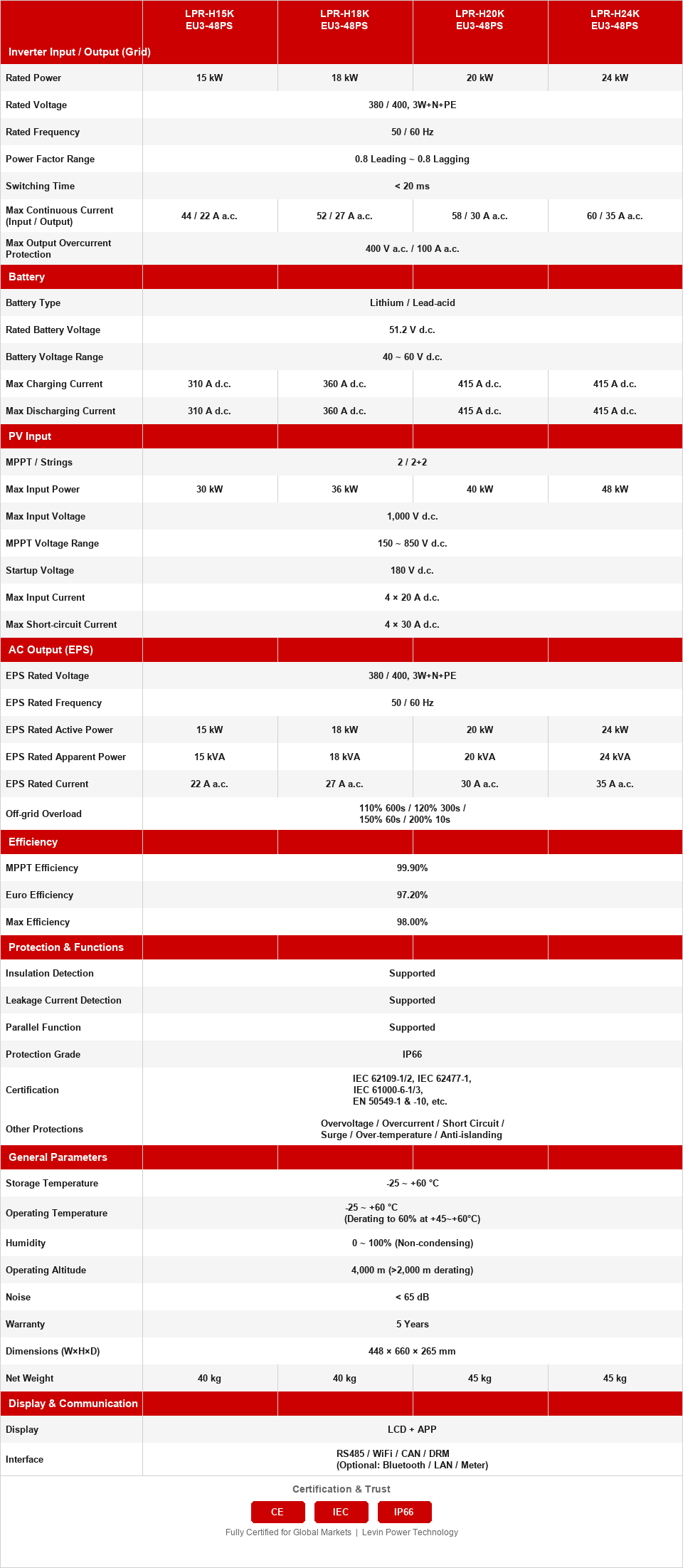

PV input capacity varies by model:
| Model | Max PV Power | Max PV Voltage | MPPT Range |
|---|---|---|---|
| LPR-H15K-EU3-48PS | 30kW | 1,000 Vdc | 150~850 Vdc |
| LPR-H18K-EU3-48PS | 36kW | 1,000 Vdc | 150~850 Vdc |
| LPR-H20K-EU3-48PS | 40kW | 1,000 Vdc | 150~850 Vdc |
| LPR-H24K-EU3-48PS | 48kW | 1,000 Vdc | 150~850 Vdc |
| LPR-H16K-EU1-48PS | 22.5kW | 550 Vdc | 120~520 Vdc |
The EU3 series supports up to 1,000Vdc open-circuit voltage — compatible with high-power commercial PV strings using 144-cell or larger modules.
All models carry IP66 outdoor protection, CE marking, and IEC compliance. All models come with a 5-year warranty.
The H16K's broader certification coverage — including NRS (South Africa) and ABNT NBR (Brazil) — makes it suitable for export to multiple markets beyond Europe.
