Outdoor Cabinet
Key Features
90% DOD — 80kWh to 225kWh Scalable Capacity Same 51.2V / 16.08kWh module stacked 5–14 units (N+1). Scale capacity precisely without changing BMS or communication architecture.
≥8,000 Cycles + 5+5 Year Warranty Superior cycle life for daily C&I peak-shaving and demand-response, backed by ten years of total warranty coverage.
Fan Cooling — Low Maintenance Cost Passive fan cooling (no compressor) reduces energy consumption and maintenance requirements versus air-conditioned cabinet alternatives — ideal for temperature-controlled indoor installations.
Flexible Stack/Frame Mounting Supports both stack mounting and iron frame mounting configurations, accommodating different floor space and ceiling height constraints in equipment rooms and industrial facilities.
CE / UN38.3 Certified — CAN / RS485 Globally certified with dual-protocol communication for plug-and-play integration with mainstream C&I inverters and EMS platforms.
Proven Installations
Common Questions

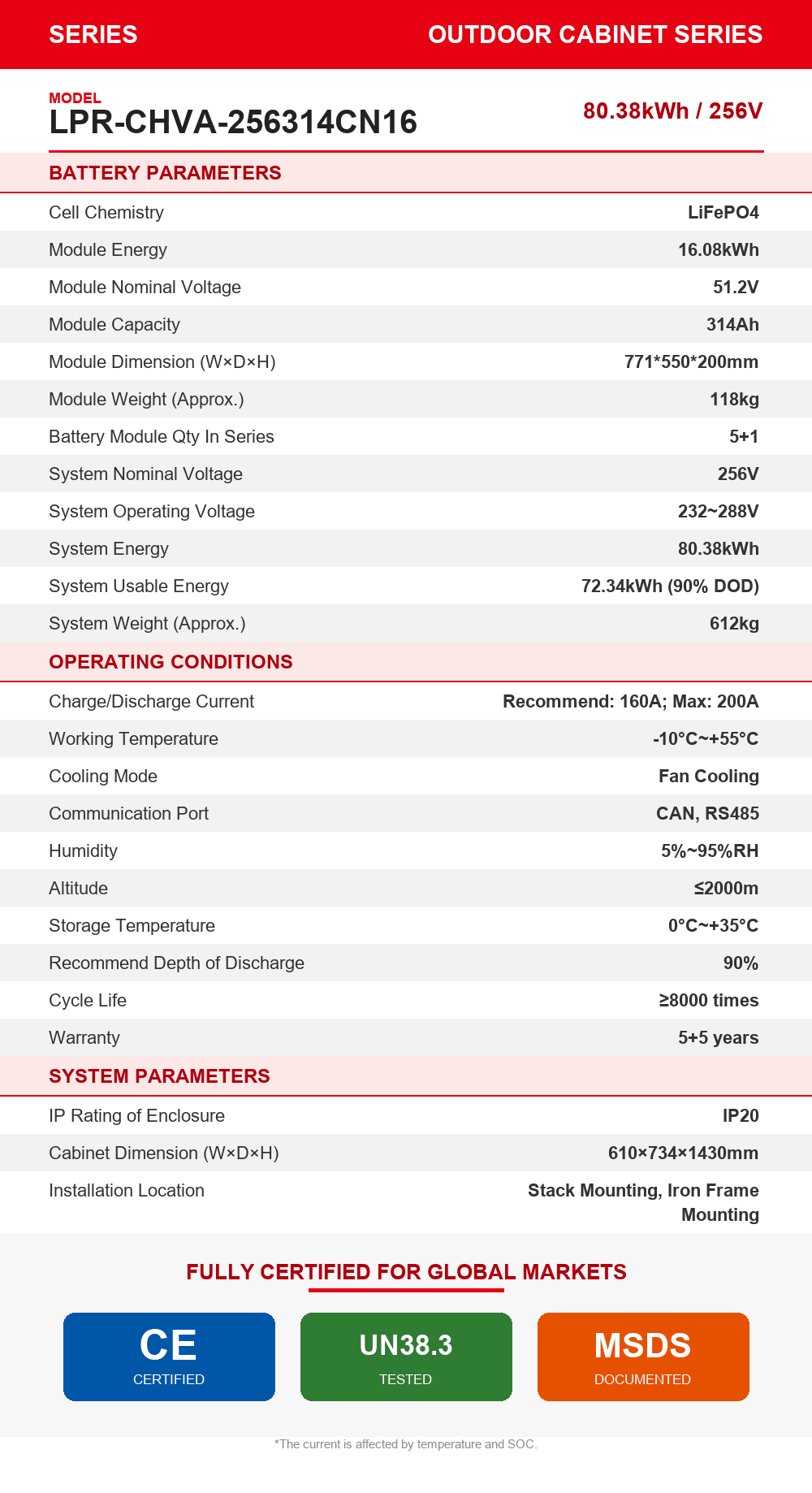

10 models from 80.38kWh (256V, 5+1) to 225.08kWh (716.8V, 14+1). All modules are 51.2V / 314Ah / 16.08kWh. System usable energy is 90% DOD across all models.

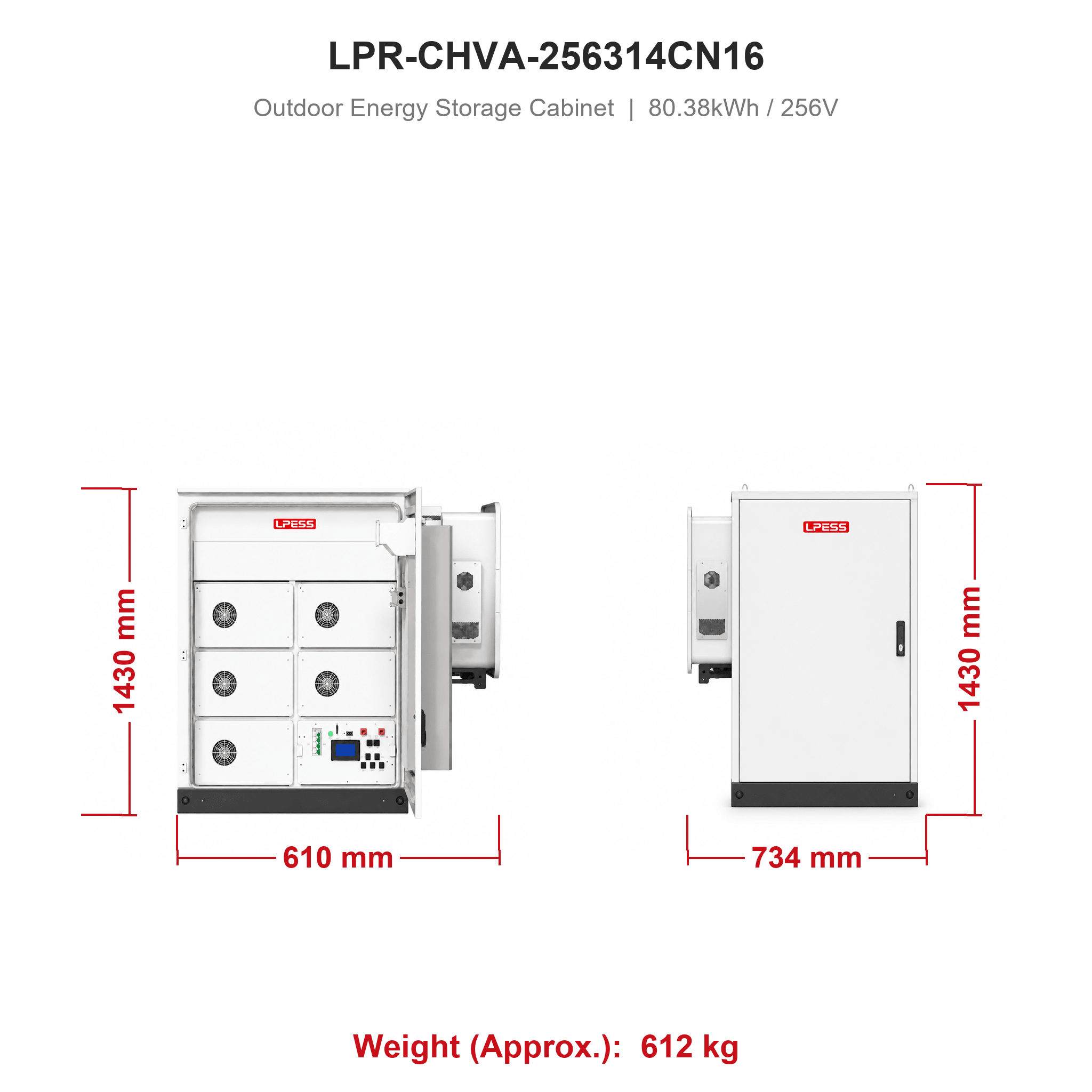

Stack Mounting or Iron Frame Mounting, IP20 rated — designed for indoor protected environments such as equipment rooms, substations, or covered industrial premises. Not rated for direct outdoor exposure.
≥8,000 cycles at 90% DOD recommended discharge, with a 5+5 year warranty.
CAN and RS485. CE / UN38.3 / MSDS certified for global markets.
