Pure Energy Storage Cabinet

LPR-ESA-125261J 261kWh 125kW Integrated Liquid Cooling BESS Cabinet 314Ah LFP 98.5% Efficiency Modbus TCP IEC 62619 CE

  • High-Efficiency Energy Storage: Delivers exceptional performance with 261 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.
download
LPR-ESA-125261J
LPR-ESA-125261J
LPR-ESA-125261J
LPR-ESA-125261J

Product Overview

Product Features & Specifications

  • High-Efficiency Energy Storage: Delivers exceptional performance with 261 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.

LPR-ESA-125261J

Additional inverter capacities, battery configurations, system integrations, and customization options are available upon request. Contact our team for detailed specifications, project consultation, and OEM/ODM support.

Key Features

LPR-ESA-125261J Key Features

261kWh Liquid Cooling — High Energy Density

261kWh Liquid Cooling — High Energy Density

261kWh Liquid Cooling — High Energy Density Both models deliver 261kWh in a single outdoor cabinet with liquid cooling, maintaining stable performance across wide temperature ranges for 24/7 commercial operation.

Flexible PCS Integration

Flexible PCS Integration

 Flexible PCS Integration ESA includes a built-in 125kW PCS (≥98.5% efficiency, power factor 0.99, THD <2%). ESL supports optional 30–125kW wall-mounted hybrid inverter — adapting to different project integration requirements.

Multi-Grid Compatibility

Multi-Grid Compatibility

Multi-Grid Compatibility Supports 50/60Hz, 230V/380V/400V three-phase AC (3L-N-PE) — compatible with European, Asian, and global grid standards.

Advanced Communication

Advanced Communication

Advanced Communication ESA uses Modbus TCP for SCADA/EMS integration; ESL adds 4G for remote monitoring without local network infrastructure.

Globally Certified

Globally Certified

Globally Certified ESA: IEC 62619, IEC 63056, IEC/EN 61000-6-2/-4, IEC/EN 62477-1, GB/T 36276. ESL: CE / UN38.3 / MSDS — covering major international markets and shipping regulations.

Proven Installations

Related Project Cases

3,466.26 kW Rooftop Solar Groundbreaking | Levin Power × China Yangzi

3,466.26 kW Rooftop Solar Groundbreaking | Levin Power × China Yangzi

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
1MW C&I Energy Storage System for Manufacturing Factory | Philippines

1MW C&I Energy Storage System for Manufacturing Factory | Philippines

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate | Thailand

500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate | Thailand

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

Common Questions

Pure Energy Storage Cabinet FAQs

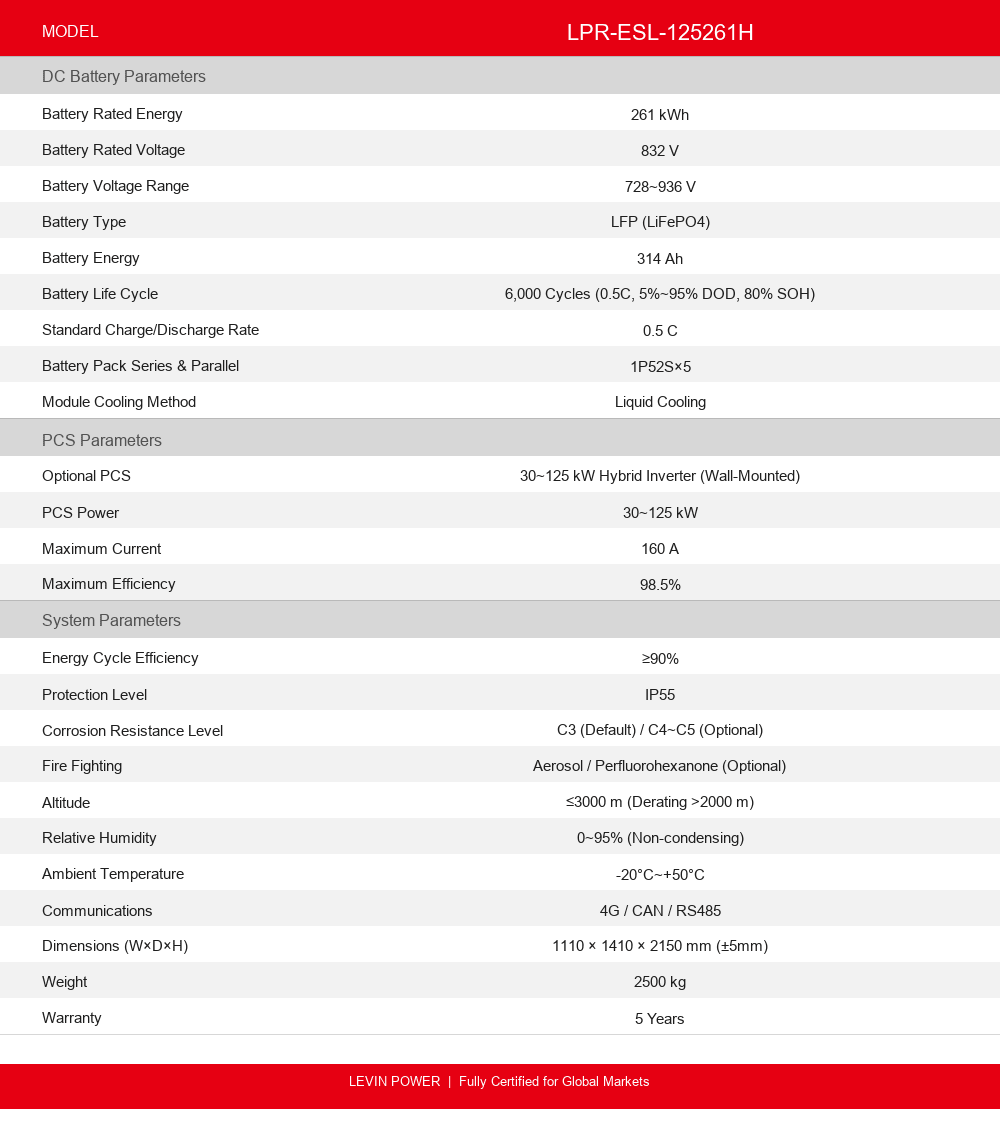

ESA-125261J ESL-125261H
Integration Battery + PCS integrated Battery cabinet + optional wall-mounted PCS
Rated Power 125 kW (built-in) 30–125 kW (optional)
Communication Modbus TCP 4G / CAN / RS485
IP Rating IP54 IP55
Temp Range -30°C to +55°C -20°C to +50°C
Certifications IEC 62619, IEC 63056, IEC/EN 61000, IEC/EN 62477-1, GB/T 36276 CE / UN38.3 / MSDS

 Both use the same 314Ah / LFP cell basis. The ESA is configured as 1P260S (261kWh / 768V nominal); the ESL as 1P52S×5 (832V nominal). Both support 5%~95% DOD with 6,000-cycle life at 80% SOH.

Yes. Both are outdoor-rated: ESA is IP54 (fixed outdoor location, ≤2,000m altitude); ESL is IP55 with optional C4/C5 corrosion resistance and altitude up to 3,000m (derating above 2,000m).

The ESL includes optional Aerosol / Perfluorohexanone fire suppression. The ESA meets IEC 62619 and IEC 63056 safety standards. Both use liquid cooling for thermal management.

Explore Our Products

Related Energy Storage & Solar Solutions

Discover our complete portfolio of smart energy products, including solar inverters, battery storage systems, hybrid energy solutions, and commercial energy storage systems designed for a wide range of residential, commercial, and industrial applications.
LPR-ESA-125261J

LPR-ESA-125261J

High-Efficiency Energy Storage: Delivers exceptional performance with 261 kWh capacity. Robust Capac...
Cathode Materials
LiFePO4
Max Load Quantity(cells)
N+1
specifications
261kWh 125kW
View More
LPR-ESL-125261H

LPR-ESL-125261H

High-Efficiency Energy Storage: Delivers exceptional performance with 261kWh 832V. Robust Capacity: ...
Cathode Materials
LiFePO4
Max Load Quantity(cells)
N+1
specifications
261kWh 832V
View More
