Stacked Type
Key Features
High-Voltage Stacked Architecture — 204.8V to 768.0V N+1 modular stacking from 4+1 to 15+1 systems. Single-column (4–7 modules) automatically expands to dual-column (8–15 modules) — no additional hardware or wiring changes.

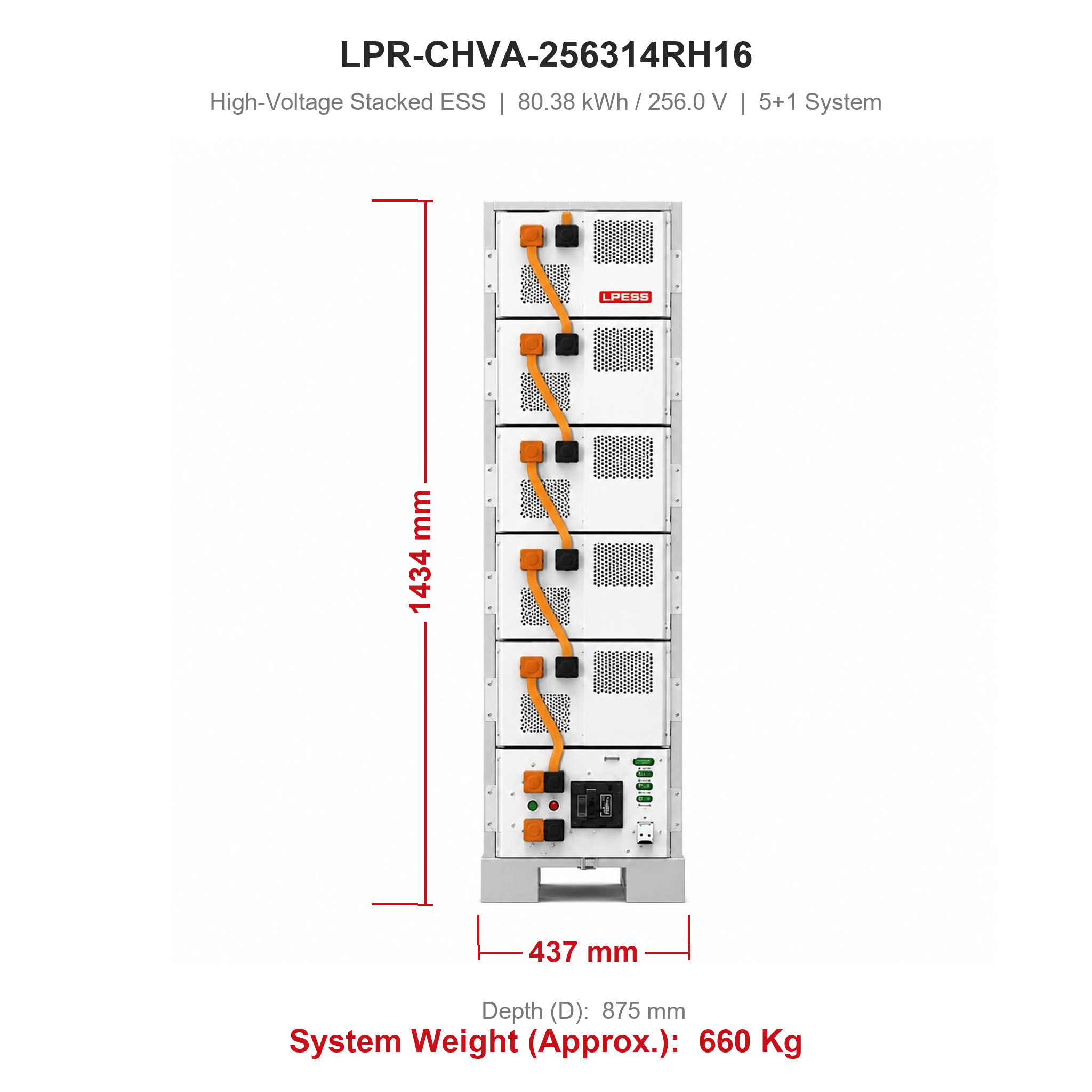

64kWh to 241kWh — One Module Platform Same 51.2V / 314Ah / 16.08kWh / 437×875×239mm module across all 12 models. Standardized spare parts and BMS firmware simplify O&M.
Wide Inverter Compatibility RS485 / CAN dual-protocol communication. Factory-verified compatible with Deye, Atess, Megarevo, Sinexcel, Solis, Growatt and more — plug-and-play for most C&I hybrid systems.
-20°C to +55°C Operating Range Suitable for cold-climate installations without additional heating equipment, covering most global C&I deployment environments.
CE / IEC / UL / UN38.3 Certified Globally certified for commercial ESS deployment and international shipping.
Proven Installations
Common Questions
12 models from 64.31kWh (204.8V, 4+1 system) to 241.15kWh (768.0V, 15+1 system). All modules are 51.2V / 314Ah / 16.08kWh.
Each system uses N battery modules plus 1 BMS unit. The modular N+1 design allows capacity to scale in 16kWh steps without changing wiring or communication architecture — one platform from 4+1 to 15+1.
Compatible with Deye, Atess, Megarevo, Sinexcel, Solis, Growatt, and other mainstream brands via RS485 / CAN communication.
≥6,000 cycles @ 25°C, 10-year design life. Operating temperature -20°C to +55°C, storage -25°C to +60°C, humidity 0~95%.
