Outdoor Cabinet

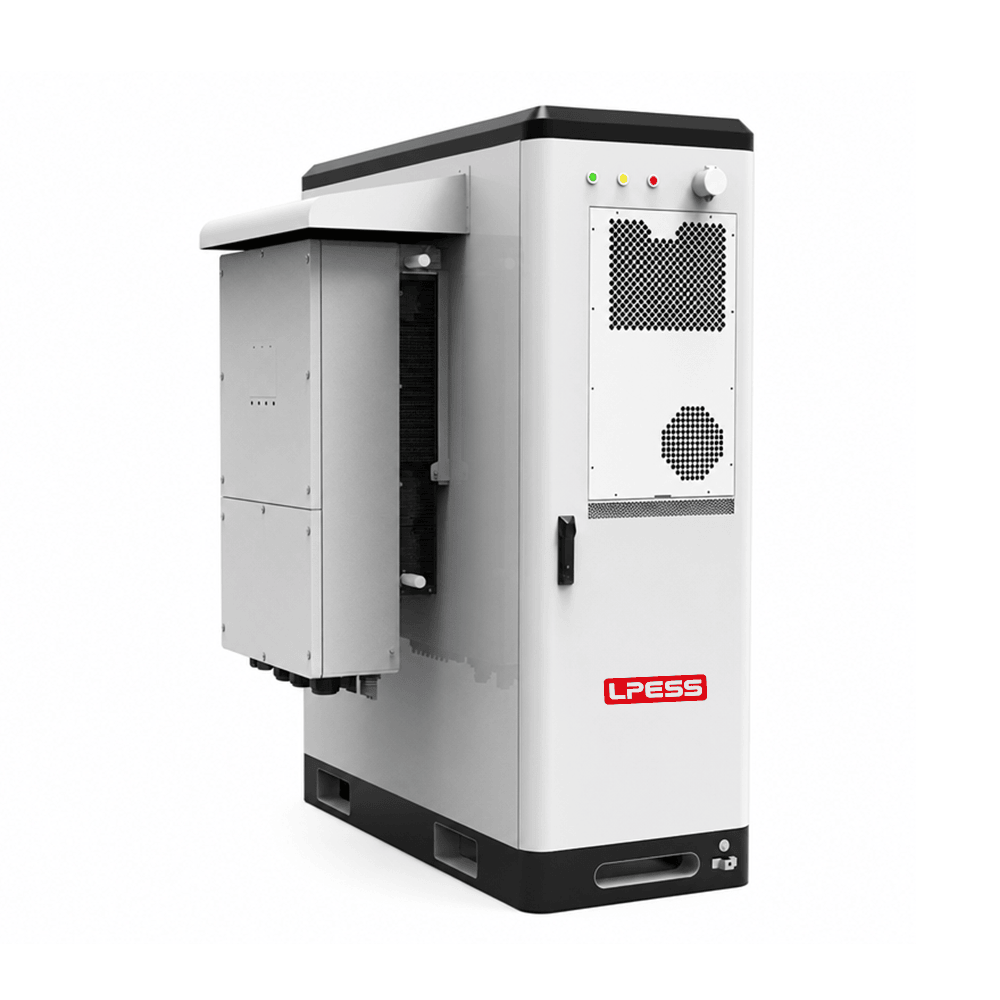

Commercial & Industrial Outdoor Energy Storage System 30kW 64kWh All-in-One PV ESS Cabinet LFP 314Ah IP55 CE Certified Factory

  • High-Efficiency Energy Storage: Delivers exceptional performance with 64.3 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.
download

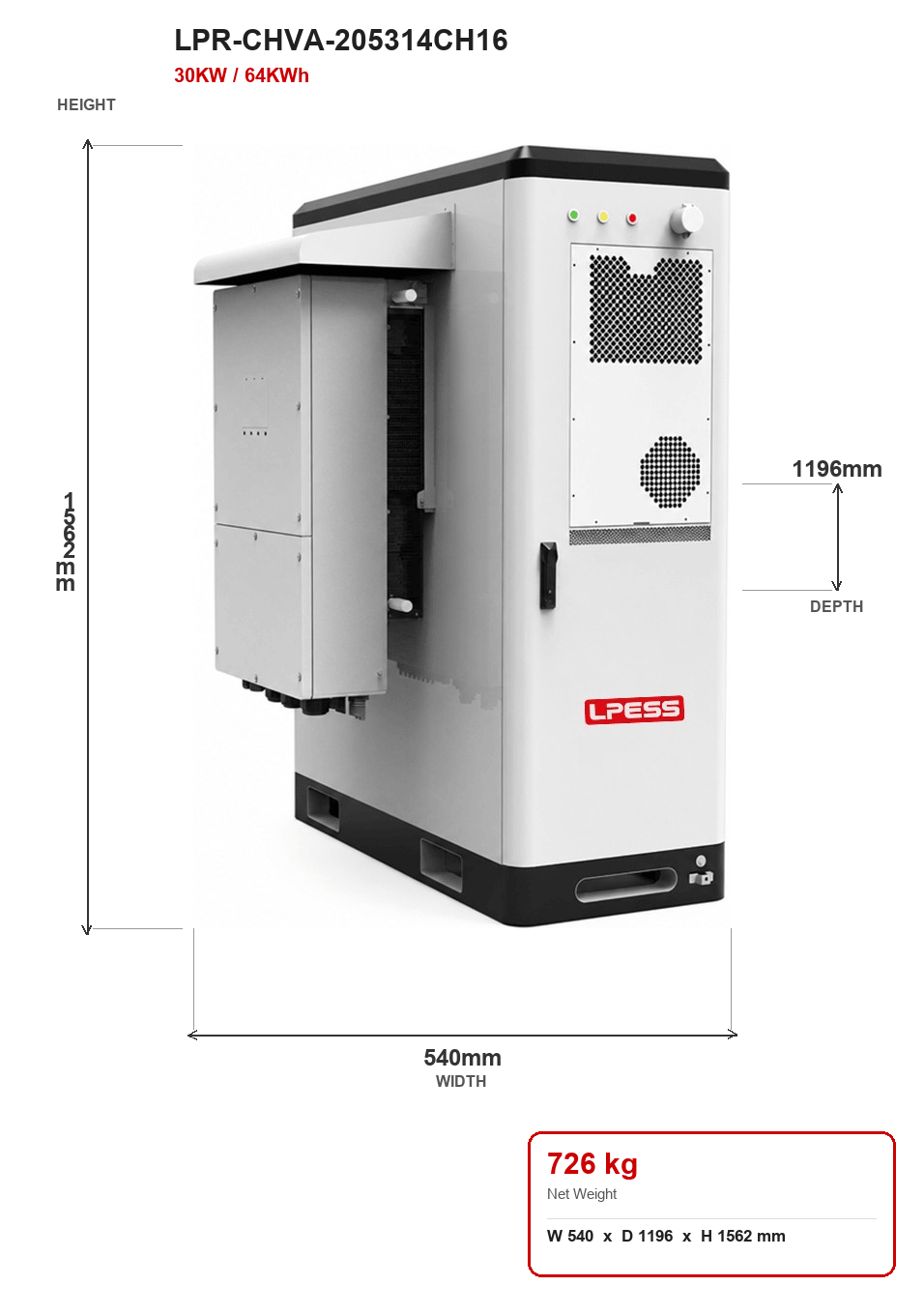

LPR-CHVA-205314CH16
LPR-CHVA-205314CH16
LPR-CHVA-205314CH16

Product Overview

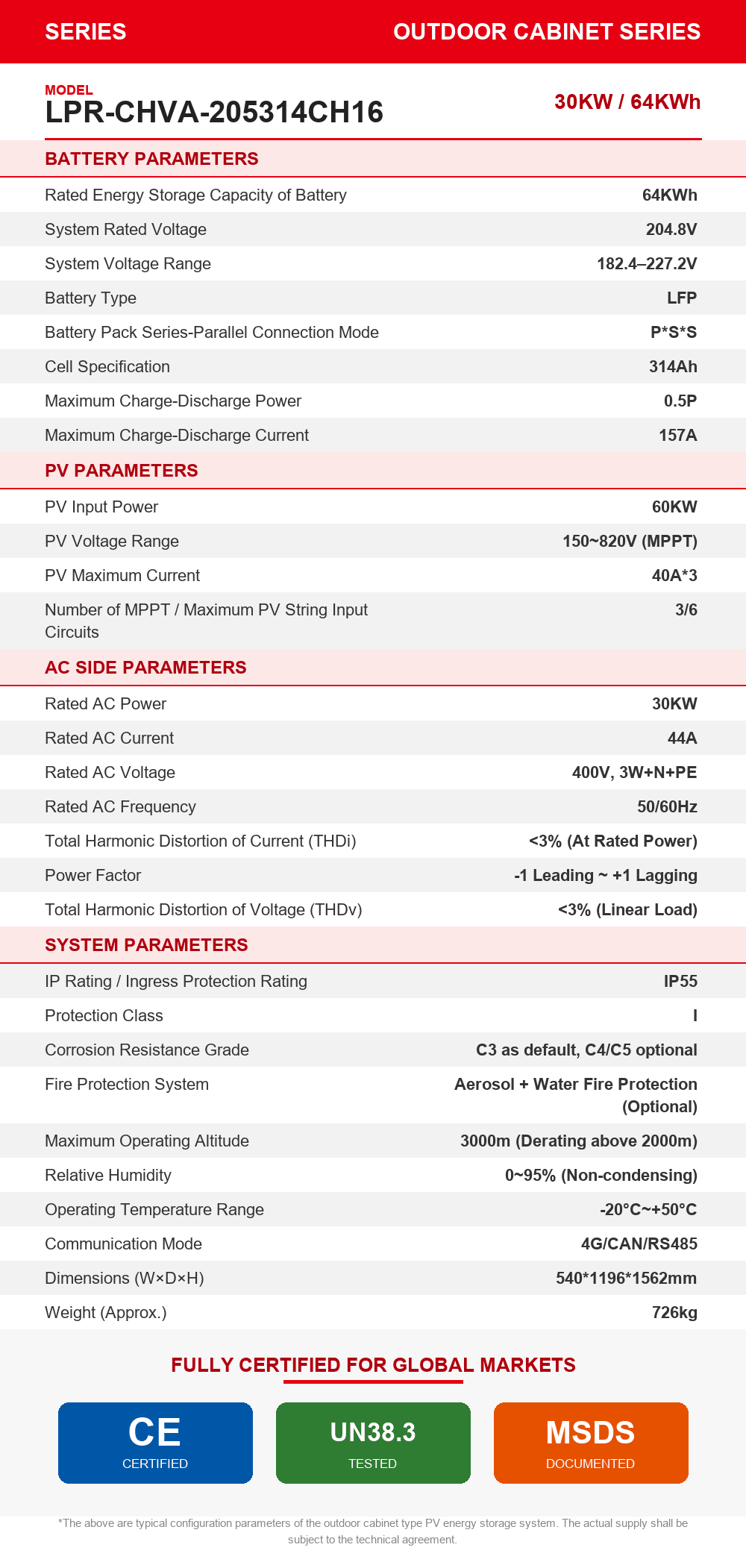

Product Features & Specifications

  • High-Efficiency Energy Storage: Delivers exceptional performance with 64.3 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.

LPR-CHVA-205314CH16

Additional inverter capacities, battery configurations, system integrations, and customization options are available upon request. Contact our team for detailed specifications, project consultation, and OEM/ODM support.

Key Features

LPR-CHVA-205314CH16 Key Features

True All-in-One — PV + Storage + Inverter in One Cabinet

True All-in-One — PV + Storage + Inverter in One Cabinet

True All-in-One — PV + Storage + Inverter in One Cabinet Eliminates separate inverter installation. PV strings, battery, and AC grid connection all terminate at one outdoor cabinet, reducing BOS cost and installation time.

30kW to 125kW — Scalable C&I Power Range

30kW to 125kW — Scalable C&I Power Range

30kW to 125kW — Scalable C&I Power Range Five models covering small commercial (30kW) to medium industrial (125kW) load profiles, all with LFP 314Ah cells and up to 10 MPPT inputs.

IP55 + Optional Fire Suppression

IP55 + Optional Fire Suppression

IP55 + Optional Fire Suppression Weather-resistant IP55 enclosure with optional aerosol + water fire protection — built for unattended outdoor deployment in industrial and commercial sites.

Wide Altitude & Temperature Range

Wide Altitude & Temperature Range

Wide Altitude & Temperature Range Operates from -20°C to +50°C, up to 3,000m altitude (derating above 2,000m). Suitable for highland farms, remote industrial sites, and harsh outdoor environments.

4G / CAN / RS485 — Remote Monitoring Ready

4G / CAN / RS485 — Remote Monitoring Ready

4G / CAN / RS485 — Remote Monitoring Ready Built-in 4G communication enables cloud monitoring and remote O&M without on-site network infrastructure.

Proven Installations

Related Project Cases

Levin Power|3,466.26 kW Rooftop Solar Groundbreaking

Levin Power|3,466.26 kW Rooftop Solar Groundbreaking

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
Levin Power|1MW C&I Energy Storage System for Manufacturing Factory

Levin Power|1MW C&I Energy Storage System for Manufacturing Factory

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
Levin Power|500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate

Levin Power|500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

Common Questions

Outdoor Cabinet FAQ

What makes this different from a standalone battery system?

The CH16 series integrates PV inverter, battery storage, and grid connection into one outdoor cabinet — no separate inverter needed. PV strings connect directly to the cabinet (up to 250kW input), and AC output connects directly to the grid or load.

What AC power and energy storage capacity is available?

5 models from 30kW/64kWh to 125kW/241kWh. All models output three-phase 220V/380V (400V for 30kW/50kW), 50/60Hz with THDi <3%.

How many PV strings can be connected, and what is the MPPT range?

3–10 MPPTs depending on model, accepting 150~950Vdc PV voltage. The 125kW model supports up to 250kW PV input with 10 MPPT / 20 string inputs.

What safety and protection features does it include?

IP55 enclosure, C3 corrosion resistance (C4/C5 optional), optional Aerosol + Water fire suppression system, operating altitude up to 3,000m, and communication via 4G / CAN / RS485. Certified CE / UN38.3 / MSDS.

Explore Our Products

Related Energy Storage & Solar Solutions

Discover our complete portfolio of smart energy products, including solar inverters, battery storage systems, hybrid energy solutions, and commercial energy storage systems designed for a wide range of residential, commercial, and industrial applications.
LPR-CHVA-768314CH16

LPR-CHVA-768314CH16

High-Efficiency Energy Storage: Delivers exceptional performance with 241.2kWh capacity. Robust Capa...
Energy
768V
Voltage
241.2 kWh
Scenario
Commercial + Industrial
View More
LPR-CHVA-614314CH16

LPR-CHVA-614314CH16

High-Efficiency Energy Storage: Delivers exceptional performance with 192kWh capacity. Robust Capaci...
Energy
614.4V
Voltage
192 kWh
Scenario
Commercial + Industrial
View More
LPR-CHVA-460314CH16

LPR-CHVA-460314CH16

High-Efficiency Energy Storage: Delivers exceptional performance with144.7 kWh capacity. Robust Capa...
Energy
460.8V
Voltage
144.7 kWh
Scenario
Commercial + Industrial
View More
LPR-CHVA-307314CH16

LPR-CHVA-307314CH16

High-Efficiency Energy Storage: Delivers exceptional performance with 96.5 kWh capacity. Robust Capa...
Energy
307.2V
Voltage
96kWh
Scenario
Commercial + Industrial
View More
LPR-CHVA-205314CH16

LPR-CHVA-205314CH16

High-Efficiency Energy Storage: Delivers exceptional performance with 64.3 kWh capacity. Robust Capa...
Energy
204.8V
Voltage
64kWh
Scenario
Commercial + Industrial
View More
