Outdoor Cabinet

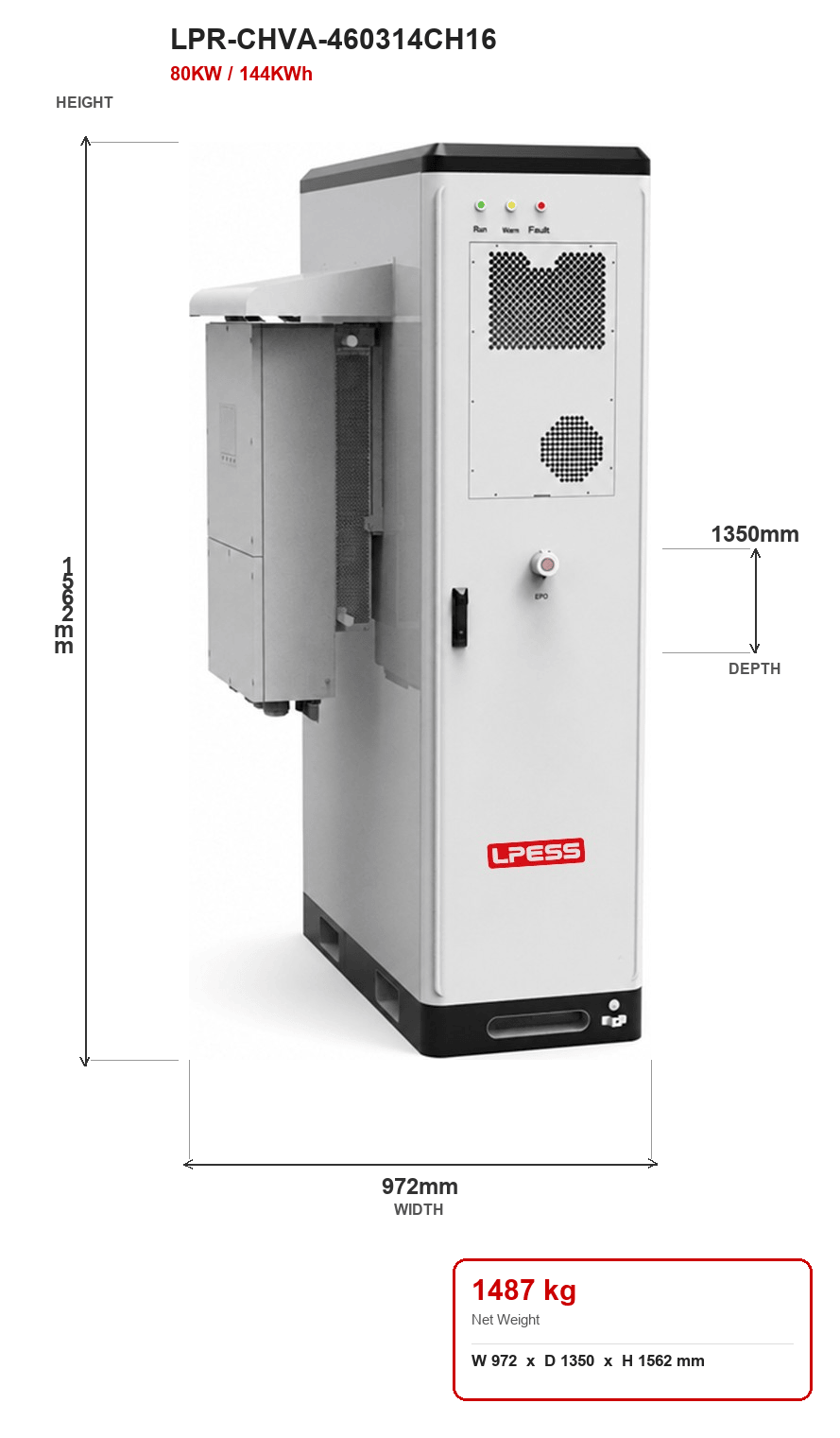

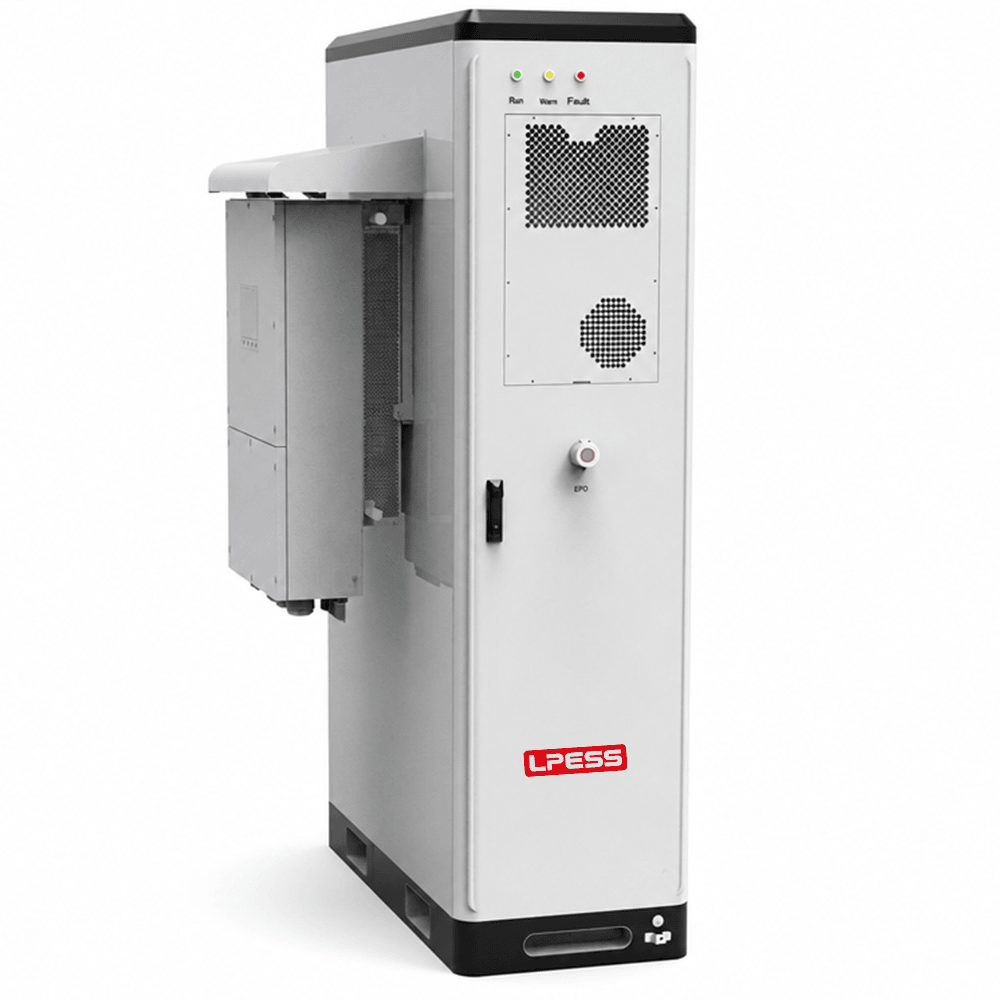

80kW 144kWh Commercial Energy Storage System Outdoor All-in-One PV ESS Cabinet 460.8V LFP 314Ah Battery IP55 CE Certified

  • High-Efficiency Energy Storage: Delivers exceptional performance with144.7 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.
download
LPR-CHVA-460314CH16
LPR-CHVA-460314CH16
LPR-CHVA-460314CH16

Product Overview

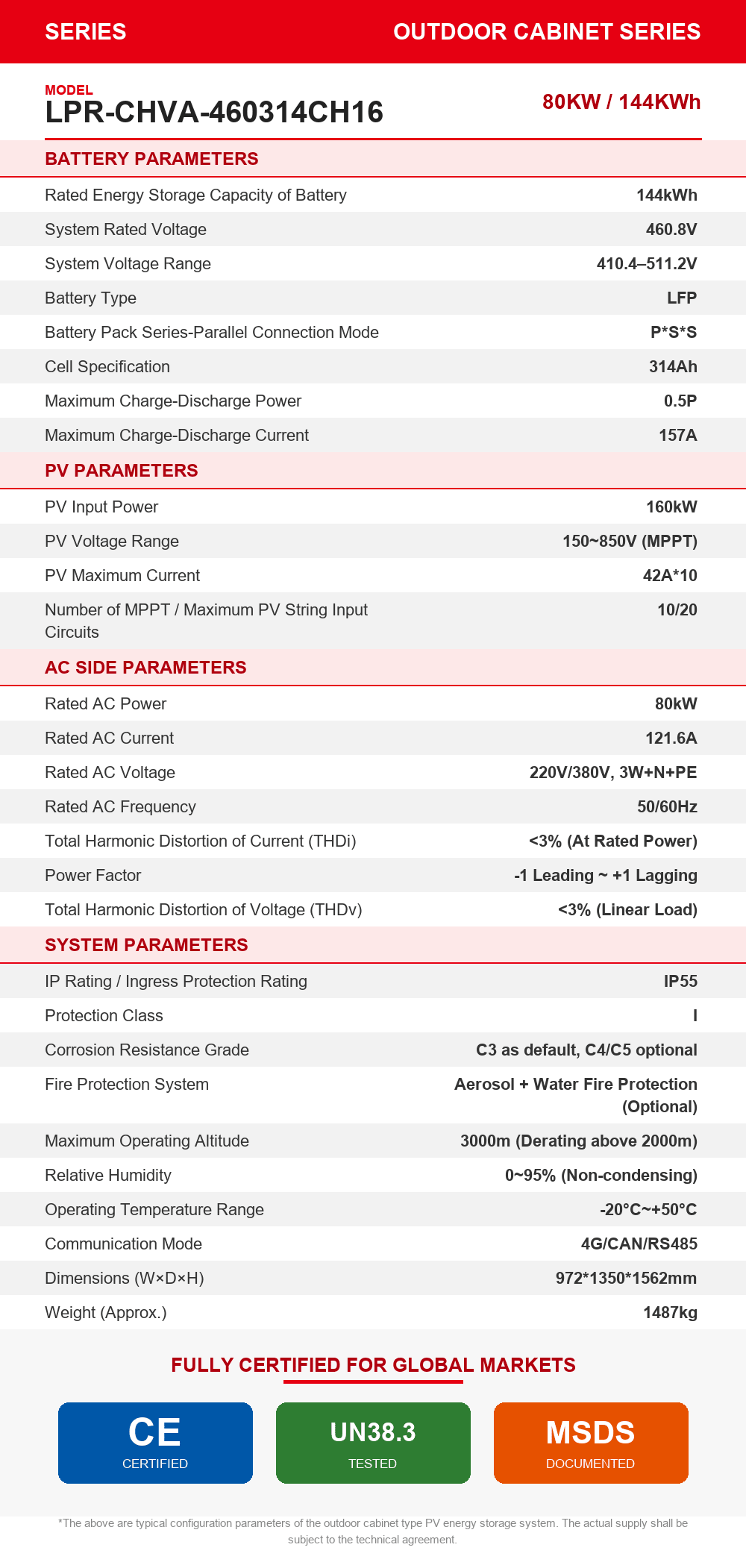

Product Features & Specifications

  • High-Efficiency Energy Storage: Delivers exceptional performance with144.7 kWh capacity.
  • Robust Capacity: 314 Ah ensures long-term power supply reliability.
  • Liquid Cooling: Maintains optimal battery temperature for extended life.
  • Weatherproof: IP55 rating guarantees reliable operation in all weather conditions.
  • Durable Design: Withstands 6000 cycles for a 15-year lifespan.

LPR-CHVA-460314CH16

Additional inverter capacities, battery configurations, system integrations, and customization options are available upon request. Contact our team for detailed specifications, project consultation, and OEM/ODM support.

Key Features

LPR-CHVA-460314CH16 Key Features

True All-in-One — PV + Storage + Inverter in One Cabinet

True All-in-One — PV + Storage + Inverter in One Cabinet

True All-in-One — PV + Storage + Inverter in One Cabinet Eliminates separate inverter installation. PV strings, battery, and AC grid connection all terminate at one outdoor cabinet, reducing BOS cost and installation time.

30kW to 125kW — Scalable C&I Power Range

30kW to 125kW — Scalable C&I Power Range

30kW to 125kW — Scalable C&I Power Range Five models covering small commercial (30kW) to medium industrial (125kW) load profiles, all with LFP 314Ah cells and up to 10 MPPT inputs.

IP55 + Optional Fire Suppression

IP55 + Optional Fire Suppression

IP55 + Optional Fire Suppression Weather-resistant IP55 enclosure with optional aerosol + water fire protection — built for unattended outdoor deployment in industrial and commercial sites.

Wide Altitude & Temperature Range

Wide Altitude & Temperature Range

Wide Altitude & Temperature Range Operates from -20°C to +50°C, up to 3,000m altitude (derating above 2,000m). Suitable for highland farms, remote industrial sites, and harsh outdoor environments.

4G / CAN / RS485 — Remote Monitoring Ready

4G / CAN / RS485 — Remote Monitoring Ready

4G / CAN / RS485 — Remote Monitoring Ready Built-in 4G communication enables cloud monitoring and remote O&M without on-site network infrastructure.

Proven Installations

Related Project Cases

3,466.26 kW Rooftop Solar Groundbreaking | Levin Power × China Yangzi

3,466.26 kW Rooftop Solar Groundbreaking | Levin Power × China Yangzi

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
1MW C&I Energy Storage System for Manufacturing Factory | Philippines

1MW C&I Energy Storage System for Manufacturing Factory | Philippines

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate | Thailand

500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate | Thailand

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

Common Questions

Outdoor Cabinet FAQs

The CH16 series integrates PV inverter, battery storage, and grid connection into one outdoor cabinet — no separate inverter needed. PV strings connect directly to the cabinet (up to 250kW input), and AC output connects directly to the grid or load.

5 models from 30kW/64kWh to 125kW/241kWh. All models output three-phase 220V/380V (400V for 30kW/50kW), 50/60Hz with THDi <3%.

3–10 MPPTs depending on model, accepting 150~950Vdc PV voltage. The 125kW model supports up to 250kW PV input with 10 MPPT / 20 string inputs.

IP55 enclosure, C3 corrosion resistance (C4/C5 optional), optional Aerosol + Water fire suppression system, operating altitude up to 3,000m, and communication via 4G / CAN / RS485. Certified CE / UN38.3 / MSDS.
