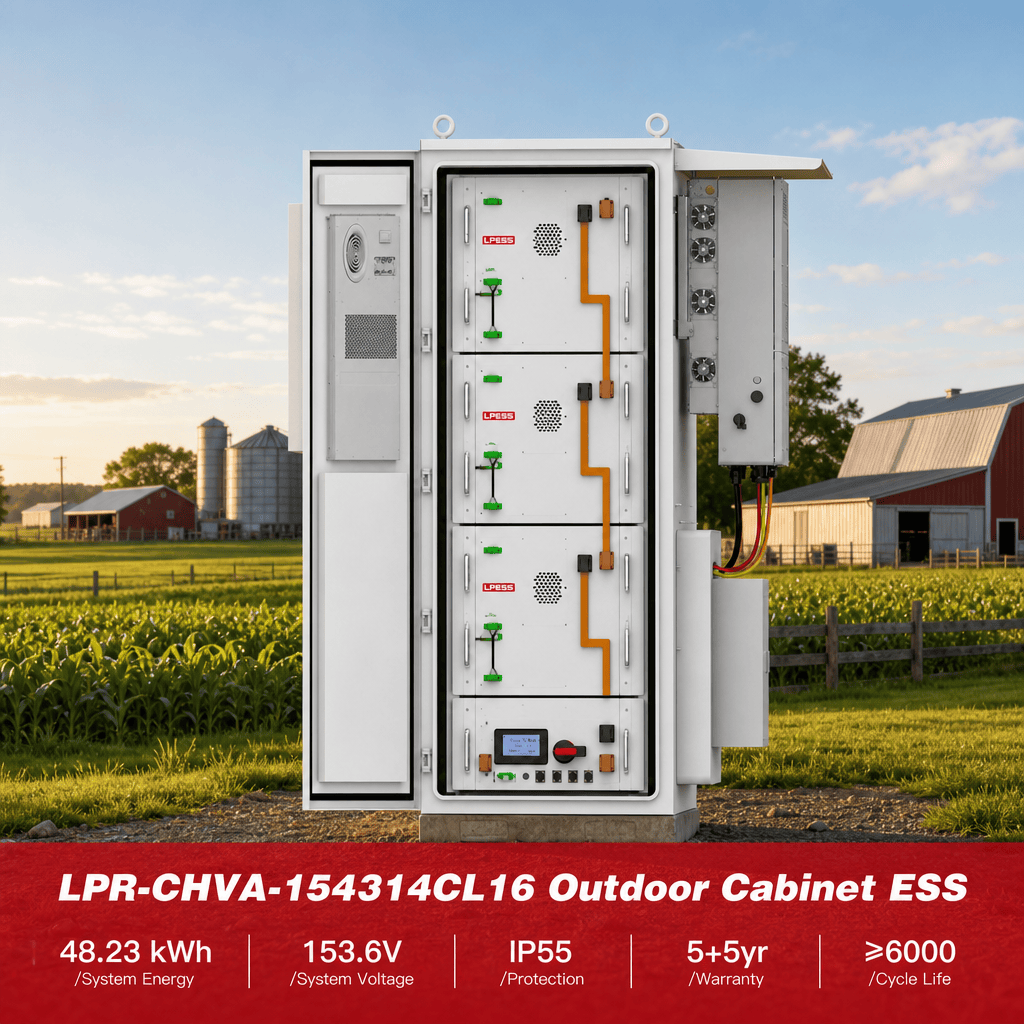

Outdoor Cabinet
Key Features
90% DOD — High Usable Energy Ratio Industry-leading 90% depth of discharge across all 13 models, maximizing revenue per kWh installed for peak-shaving and demand-response applications.
5+5 Year Warranty Ten years of total warranty coverage — 5-year standard plus 5-year extended — aligned with typical C&I project finance and PPA terms.
48kWh to 241kWh — One Platform Same 51.2V / 314Ah / 16.08kWh module stacked 3–15 units. Scale capacity without changing BMS, communication wiring, or inverter interface.
IP55 + Natural Cooling Dust and water-resistant enclosure with passive natural cooling — no moving parts, lower maintenance cost for long-term unattended operation.
RS485 / RS232 / CAN — Universal Protocol Compatible with mainstream C&I inverters and EMS/SCADA platforms out of the box. CE / UN38.3 / MSDS certified for global deployment.
Proven Installations
Common Questions
All models provide 90% DOD usable energy — e.g. 48.23kWh system energy yields 43.41kWh usable. Recommended discharge depth is 80% for extended cycle life.
≥6,000 cycles at 0.5C/0.5C, with a 5+5 year warranty (5-year product + 5-year extended).
IP55 rated — protected against dust and water jets. Designed for indoor cabinet installation (per spec sheet); suitable for protected outdoor-adjacent environments.
13 models from 48.23kWh (153.6V) to 241.15kWh (768.0V), all based on 314Ah / 16.08kWh modules. Supports up to 16 units in series for ultra-high-voltage bus configurations
