Outdoor Cabinet

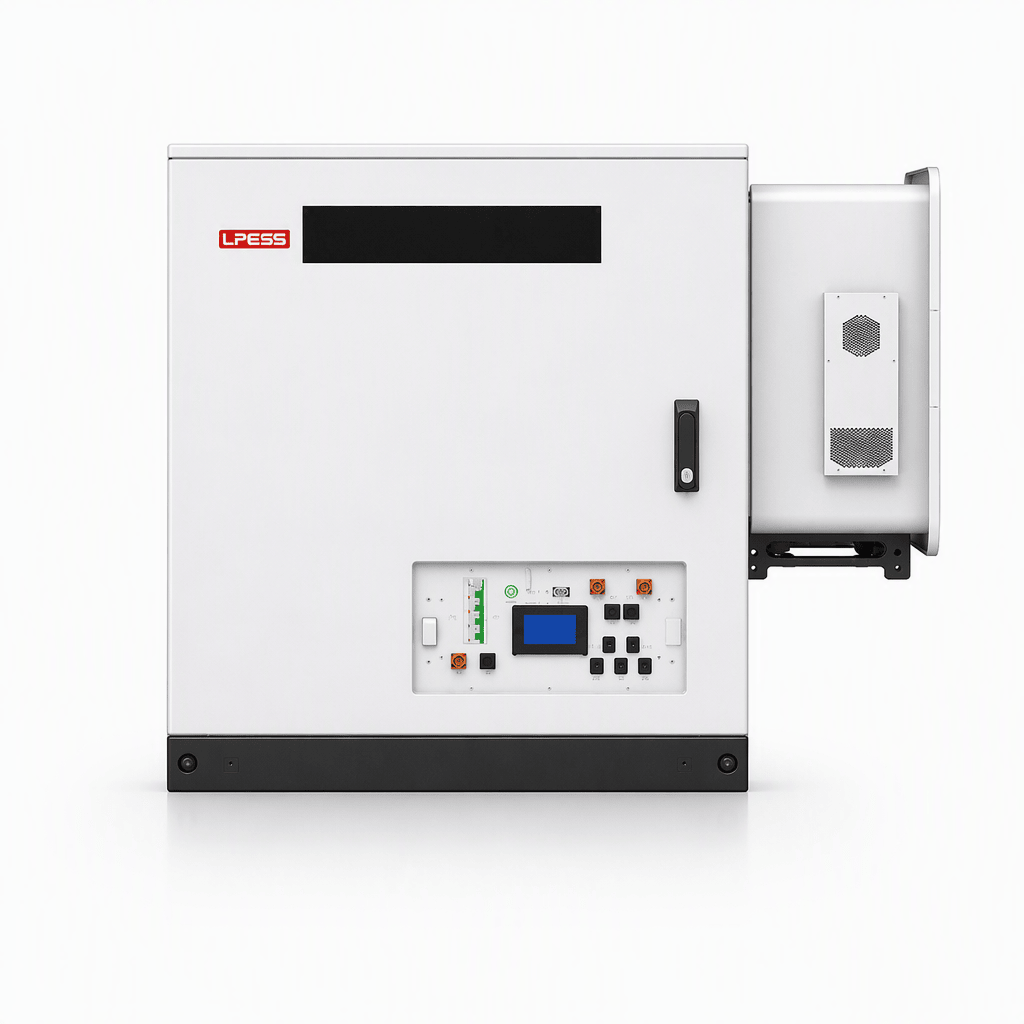

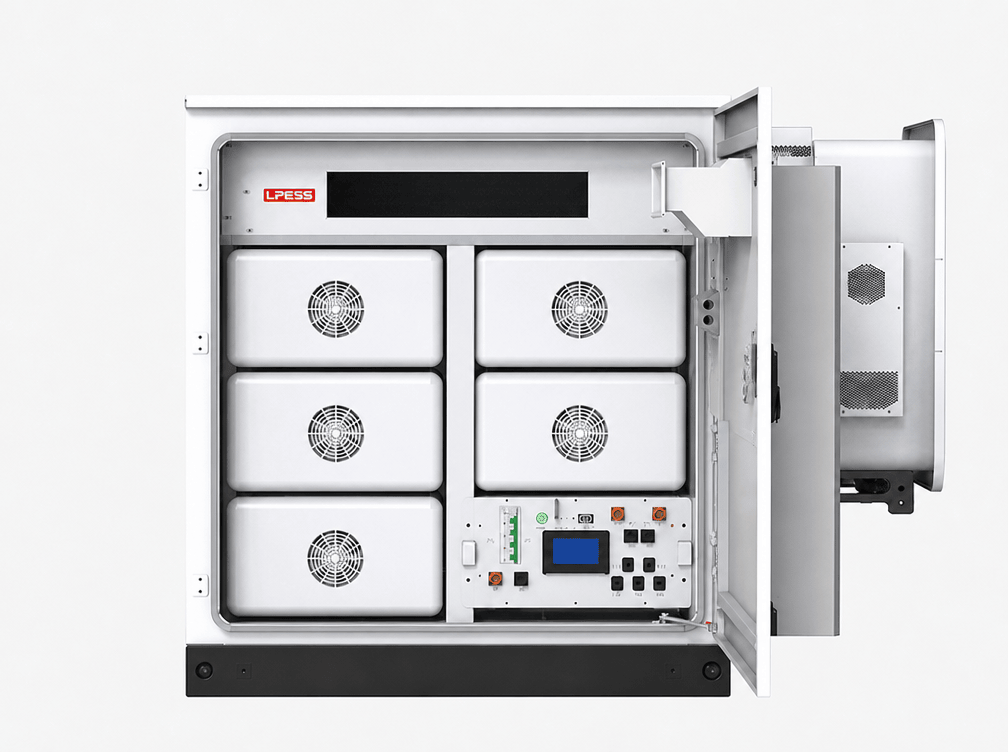

Outdoor High Voltage Battery ESS 120.58kWh 384V Energy Storage Cabinet LFP 314Ah Cells IP54 CE Certified System

Name: Outdoor High Voltage Battery ESS 120.58kWh 384V Energy Storage Cabinet LFP 314Ah Cells IP54 CE Certified System
Brand: Levin Power
SKU: 00123
Rating: 4.8 (33 reviews)

High Voltage System: Delivers 120.58kWh 384V energy for robust power storage.
Robust Capacity: 314 Ah LiFePO4 batteries ensure long-term reliability.
Liquid Cooling: Maintains optimal temperature for extended battery life.
Weatherproof: IP54 rating guarantees reliable operation in various weather conditions.

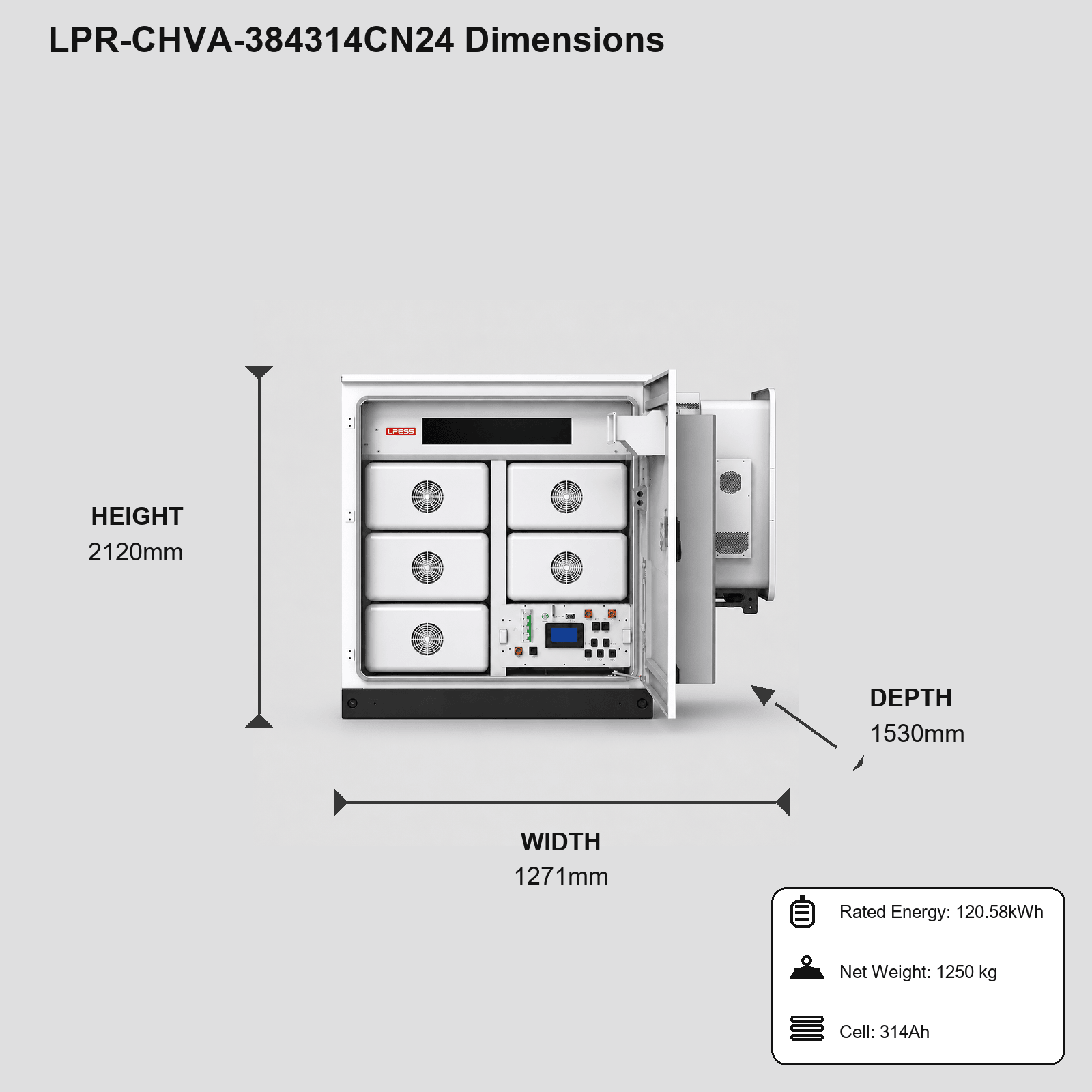

Compact Design: Measuring 440*1063*242mm for efficient space utilization.

download

Product Overview

Product Features & Specifications

High Voltage System: Delivers 120.58kWh 384V energy for robust power storage.
Robust Capacity: 314 Ah LiFePO4 batteries ensure long-term reliability.
Liquid Cooling: Maintains optimal temperature for extended battery life.
Weatherproof: IP54 rating guarantees reliable operation in various weather conditions.
Compact Design: Measuring 440*1063*242mm for efficient space utilization.

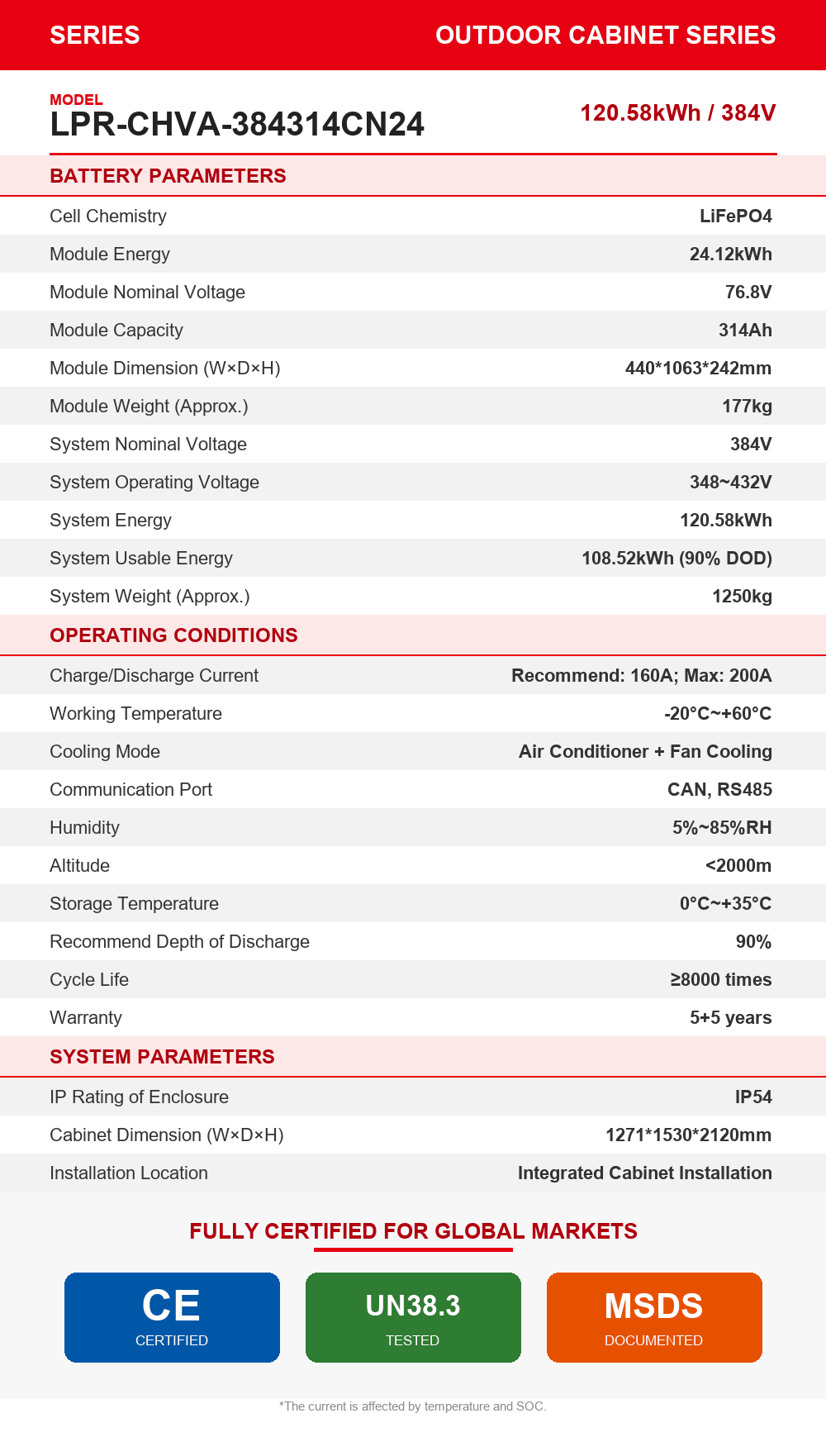

LPR-CHVA-384314CN24

Additional inverter capacities, battery configurations, system integrations, and customization options are available upon request. Contact our team for detailed specifications, project consultation, and OEM/ODM support.

Key Features

LPR-CHVA-384314CN24 Key Features

90% DOD — Maximum Usable Energy

90% DOD — Maximum Usable Energy Industry-leading depth of discharge across all 9 models, directly increasing daily cycling revenue for peak-shaving and demand-response applications.

≥8,000 Cycles + 5+5 Year Warranty

≥8,000 Cycles + 5+5 Year Warranty 30%+ more cycles than standard C&I batteries. Ten years of total warranty coverage aligned with typical project finance and PPA terms.

72.4kWh to 265.27kWh — High-Voltage Scalability

72.4kWh to 265.27kWh — High-Voltage Scalability 76.8V / 24.12kWh modules stack to reach 844.8V system voltage — compatible with large-scale C&I and utility-edge string inverter architectures.

Active Cooling + IP54 — True Outdoor All-in-One

Active Cooling + IP54 — True Outdoor All-in-One Integrated air conditioner and fan cooling in a weather-sealed IP54 cabinet. No separate climate control or shelter required.

CE / UN38.3 Certified — Global Deployment Ready

CE / UN38.3 Certified — Global Deployment Ready Certified for international shipping and commercial ESS installation across global markets.

Proven Installations

Related Project Cases

3,466.26 kW Rooftop Solar Groundbreaking | Levin Power × China Yangzi

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

1MW C&I Energy Storage System for Manufacturing Factory | Philippines

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate | Thailand

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

Explore Our Products

Related Energy Storage & Solar Solutions

Discover our complete portfolio of smart energy products, including solar inverters, battery storage systems, hybrid energy solutions, and commercial energy storage systems designed for a wide range of residential, commercial, and industrial applications.

LPR-CHVA-768314CN24

High Voltage System: Delivers 241.15kWh 768V energy for robust power storage. Robust Capacity: 314 A...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 10+1

specifications: 241.15kWh 768V

LPR-CHVA-845314CN24

High Voltage System: Delivers265.27kWh 844.8V energy for robust power storage. Robust Capacity: 314 ...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 11+1

specifications: 265.27kWh 844.8V

LPR-CHVA-691314CN24

High Voltage System: Delivers 217.04kWh 691.2Venergy for robust power storage. Robust Capacity: 314 ...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 9+1

specifications: 217.04kWh 691.2V

LPR-CHVA-614314CN24

High Voltage System: Delivers 192.92kWh 614.4V energy for robust power storage. Robust Capacity: 314...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 8+1

specifications: 192.92kWh 614.4V

LPR-CHVA-538314CN24

High Voltage System: Delivers 168.81kWh 537.6V energy for robust power storage. Robust Capacity: 314...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 7+1

specifications: 168.81kWh 537.6V

LPR-CHVA-461314CN24

High Voltage System: Delivers 144.69kWh 460.8Venergy for robust power storage. Robust Capacity: 314 ...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 6+1

specifications: 144.69kWh 460.8V

LPR-CHVA-384314CN24

High Voltage System: Delivers 120.58kWh 384V energy for robust power storage. Robust Capacity: 314 A...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 5+1

specifications: 120.58kWh 384V

LPR-CHVA-307314CN24

High Voltage System: Delivers 96.46kWh 307.2V energy for robust power storage. Robust Capacity: 314 ...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 4+1

specifications: 96.46kWh 307.2V

LPR-CHVA-230314CN24

High Voltage System: Delivers 72.4kWh 230.4V energy for robust power storage. Robust Capacity: 314 A...

Cathode Materials: LiFePO4

Max Load Quantity(cells): 3+1

specifications: 72.4kWh 230.4V
