Outdoor Cabinet
Key Features
90% DOD — Maximum Usable Energy Industry-leading depth of discharge across all 9 models, directly increasing daily cycling revenue for peak-shaving and demand-response applications.
≥8,000 Cycles + 5+5 Year Warranty 30%+ more cycles than standard C&I batteries. Ten years of total warranty coverage aligned with typical project finance and PPA terms.
72.4kWh to 265.27kWh — High-Voltage Scalability 76.8V / 24.12kWh modules stack to reach 844.8V system voltage — compatible with large-scale C&I and utility-edge string inverter architectures.
Active Cooling + IP54 — True Outdoor All-in-One Integrated air conditioner and fan cooling in a weather-sealed IP54 cabinet. No separate climate control or shelter required.
CE / UN38.3 Certified — Global Deployment Ready Certified for international shipping and commercial ESS installation across global markets.
Proven Installations
Common Questions

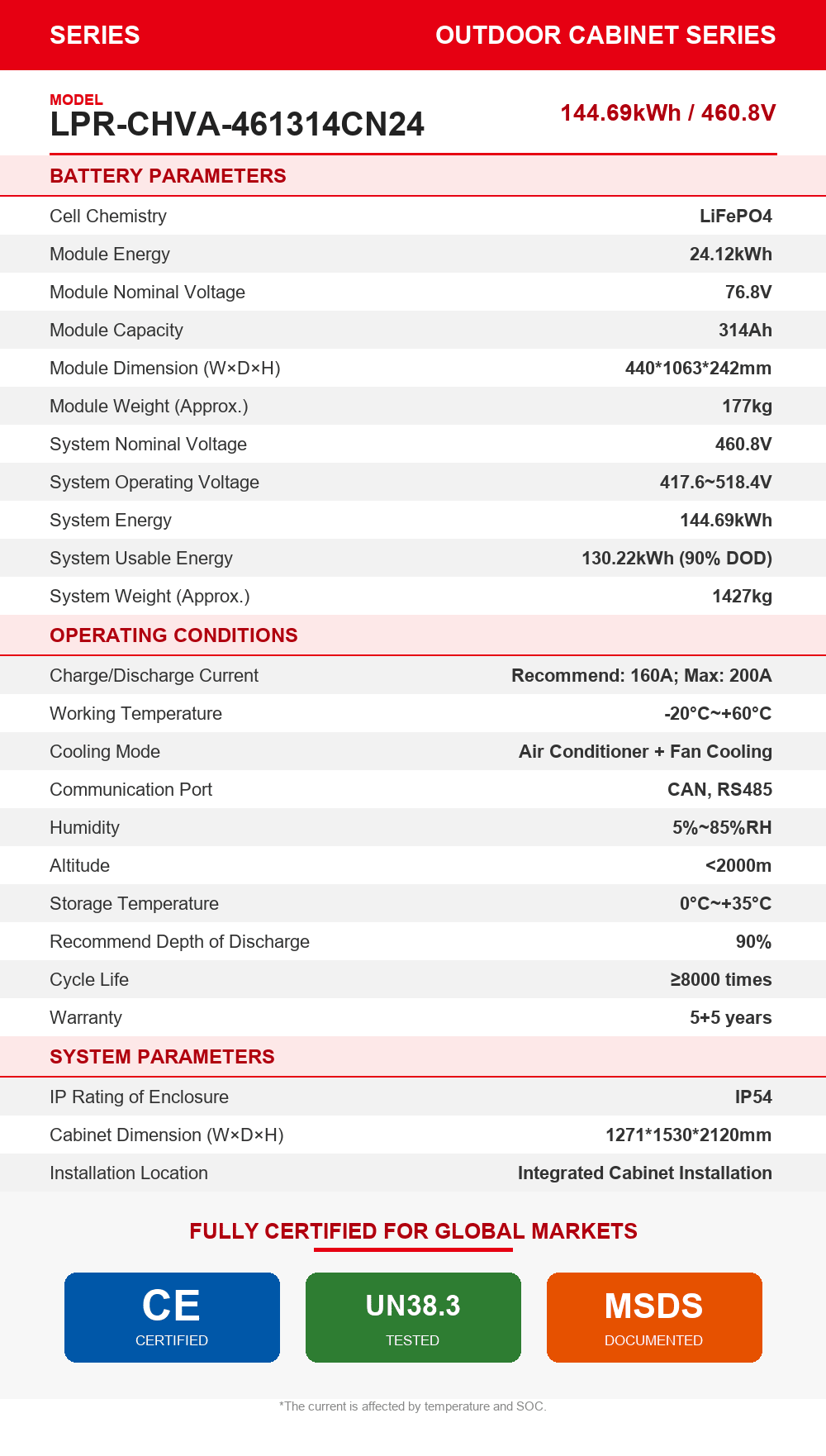

9 models from 72.4kWh (230.4V) to 265.27kWh (844.8V). All models provide 90% DOD usable energy — e.g. 72.4kWh system yields 65.16kWh usable, and 265.27kWh yields 238.79kWh usable.
≥8,000 cycles at 90% DOD recommended discharge, with a 5+5 year warranty (5-year standard + 5-year extended).

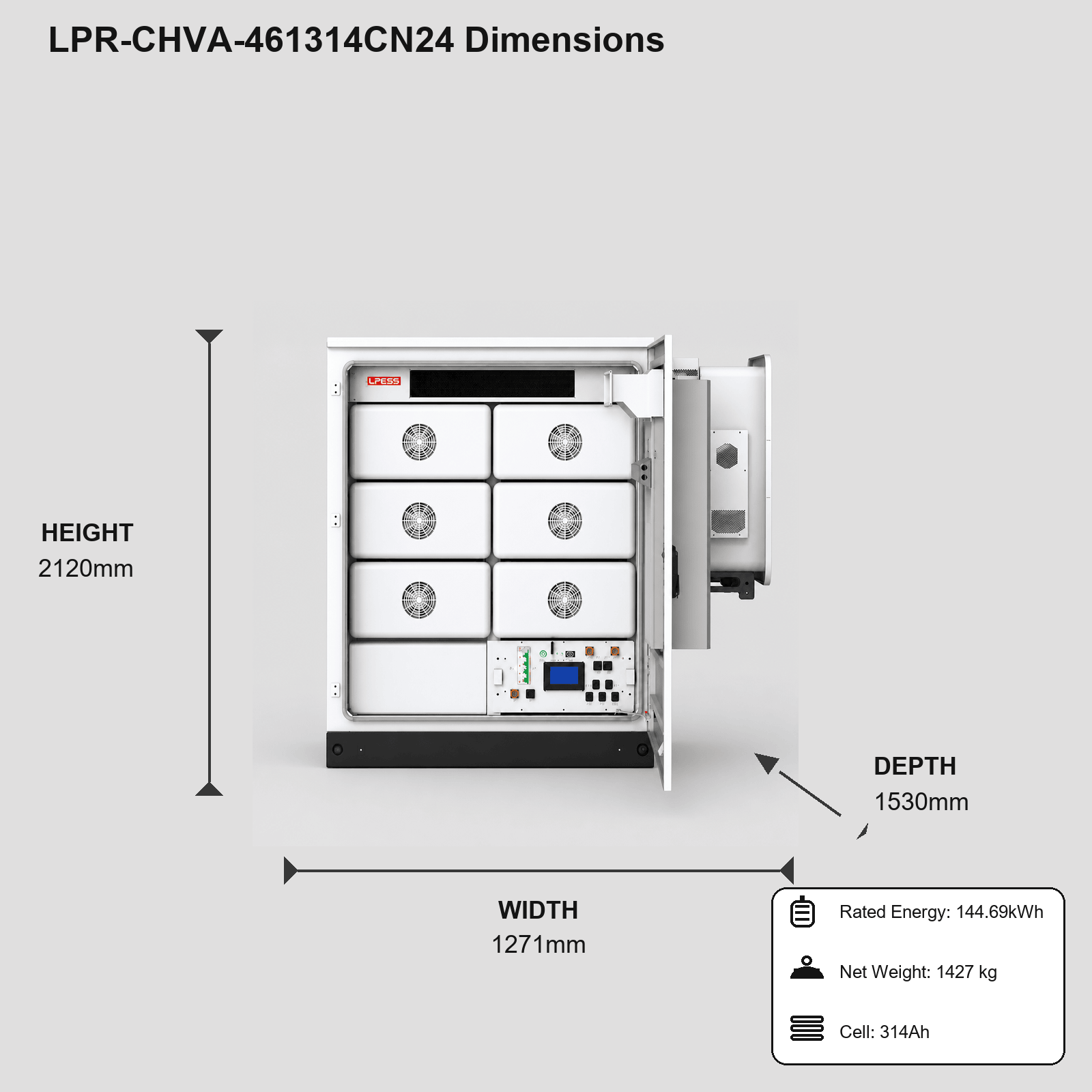

Active Air Conditioner + Fan Cooling maintains -20°C to +60°C operation in an IP54-rated integrated outdoor cabinet (1271×1530×2120mm). Designed for direct outdoor deployment.
CAN and RS485, compatible with mainstream C&I inverters and EMS/SCADA platforms. Certified CE / UN38.3 / MSDS.
