Outdoor Cabinet

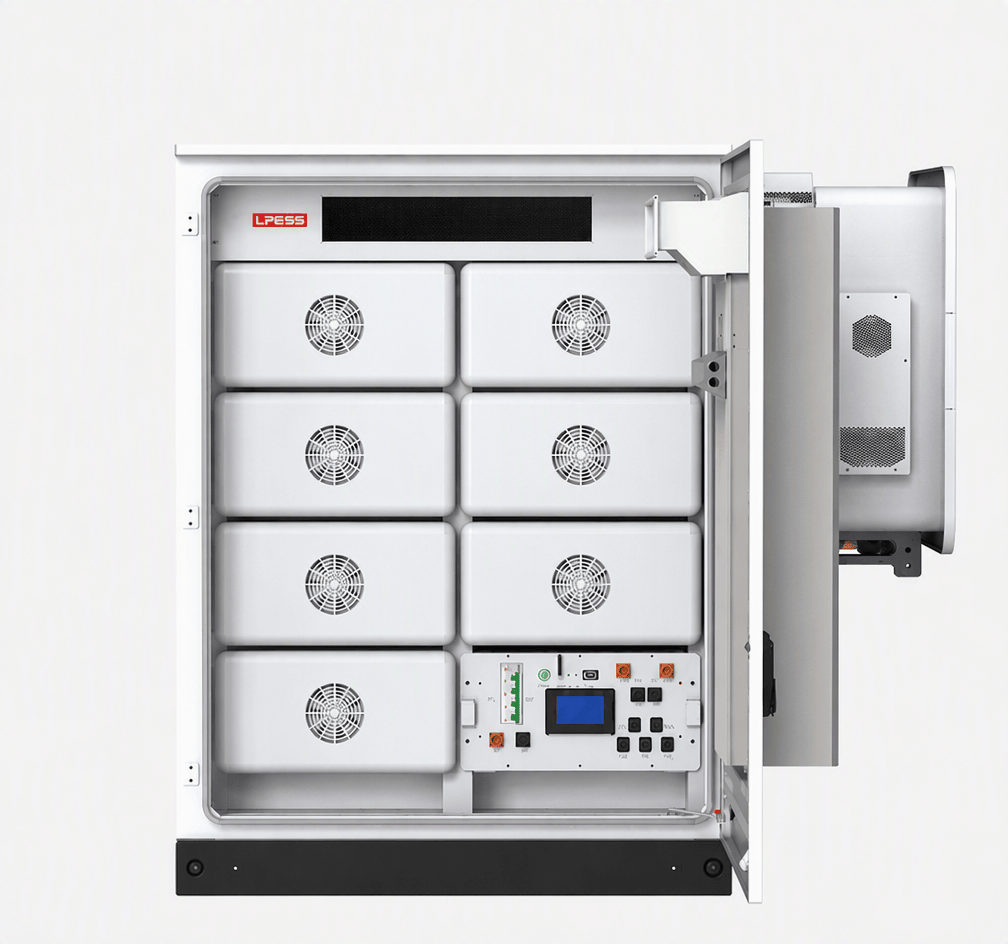

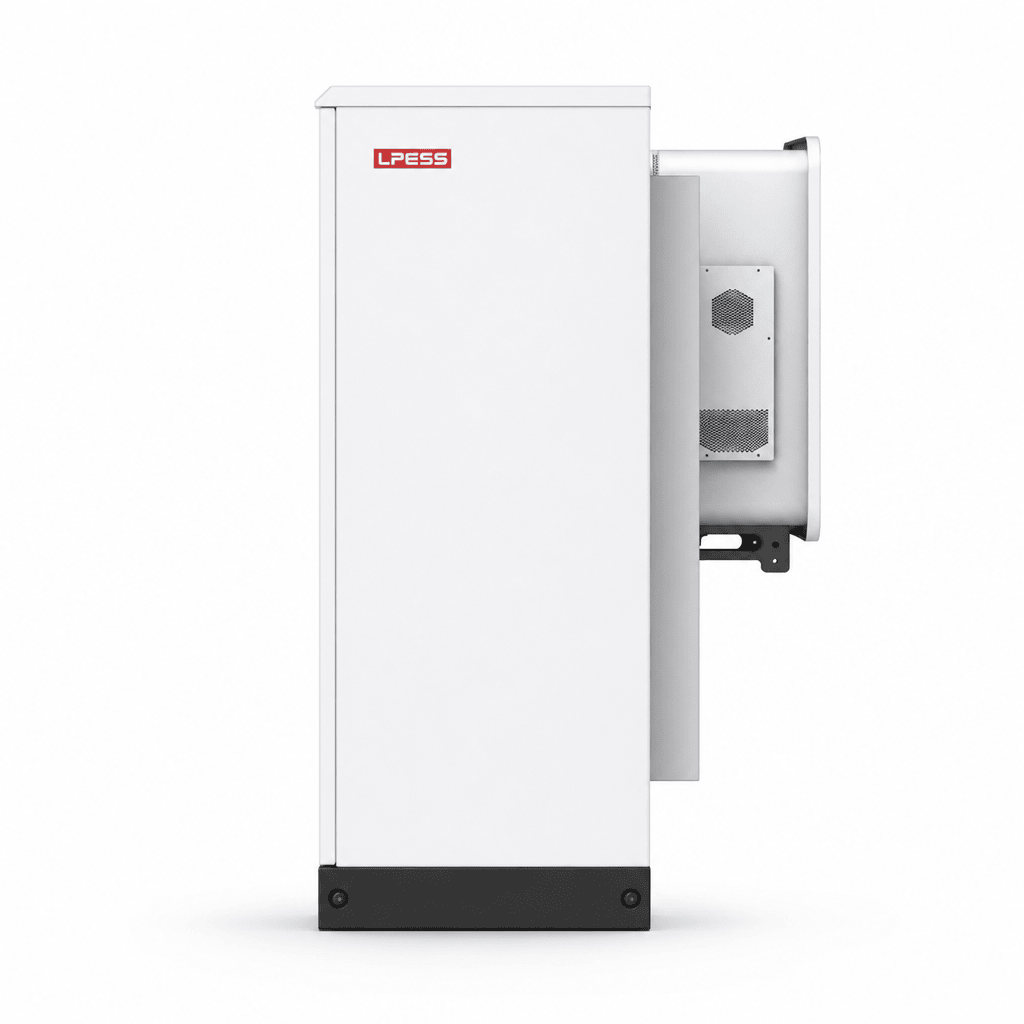

High Voltage ESS Battery Cabinet 168.81kWh 537.6V Outdoor Energy Storage System LFP 314Ah Cells IP54 CE Certified

  • High Voltage System: Delivers 168.81kWh 537.6V energy for robust power storage.
  • Robust Capacity: 314 Ah LiFePO4 batteries ensure long-term reliability.
  • Liquid Cooling: Maintains optimal temperature for extended battery life.
  • Weatherproof: IP54 rating guarantees reliable operation in various weather conditions.
  • Compact Design: Measuring 440*1063*242mm for efficient space utilization.
download
LPR-CHVA-538314CN24
LPR-CHVA-538314CN24
LPR-CHVA-538314CN24
LPR-CHVA-538314CN24

Product Overview

Product Features & Specifications

  • High Voltage System: Delivers 168.81kWh 537.6V energy for robust power storage.
  • Robust Capacity: 314 Ah LiFePO4 batteries ensure long-term reliability.
  • Liquid Cooling: Maintains optimal temperature for extended battery life.
  • Weatherproof: IP54 rating guarantees reliable operation in various weather conditions.
  • Compact Design: Measuring 440*1063*242mm for efficient space utilization.

LPR-CHVA-538314CN24

Additional inverter capacities, battery configurations, system integrations, and customization options are available upon request. Contact our team for detailed specifications, project consultation, and OEM/ODM support.

Key Features

LPR-CHVA-538314CN24 Key Features

90% DOD — Maximum Usable Energy

90% DOD — Maximum Usable Energy

90% DOD — Maximum Usable Energy Industry-leading depth of discharge across all 9 models, directly increasing daily cycling revenue for peak-shaving and demand-response applications.

≥8,000 Cycles + 5+5 Year Warranty

≥8,000 Cycles + 5+5 Year Warranty

≥8,000 Cycles + 5+5 Year Warranty 30%+ more cycles than standard C&I batteries. Ten years of total warranty coverage aligned with typical project finance and PPA terms.

72.4kWh to 265.27kWh — High-Voltage Scalability

72.4kWh to 265.27kWh — High-Voltage Scalability

72.4kWh to 265.27kWh — High-Voltage Scalability 76.8V / 24.12kWh modules stack to reach 844.8V system voltage — compatible with large-scale C&I and utility-edge string inverter architectures.

Active Cooling + IP54 — True Outdoor All-in-One

Active Cooling + IP54 — True Outdoor All-in-One

Active Cooling + IP54 — True Outdoor All-in-One Integrated air conditioner and fan cooling in a weather-sealed IP54 cabinet. No separate climate control or shelter required.

CE / UN38.3 Certified — Global Deployment Ready

CE / UN38.3 Certified — Global Deployment Ready

CE / UN38.3 Certified — Global Deployment Ready Certified for international shipping and commercial ESS installation across global markets.

Proven Installations

Related Project Cases

Levin Power|3,466.26 kW Rooftop Solar Groundbreaking

Levin Power|3,466.26 kW Rooftop Solar Groundbreaking

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
Levin Power|1MW C&I Energy Storage System for Manufacturing Factory

Levin Power|1MW C&I Energy Storage System for Manufacturing Factory

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...
Levin Power|500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate

Levin Power|500kW Off-Grid Solar & Storage Solution for Luxury Villa Estate

Solar Energy Storage System, Battery Energy Storage System, BESS, LFP Battery, PCS, BMS, EMS, Commer ...

Common Questions

Outdoor Cabinet FAQ

What energy range and usable capacity does this series offer?

9 models from 72.4kWh (230.4V) to 265.27kWh (844.8V). All models provide 90% DOD usable energy — e.g. 72.4kWh system yields 65.16kWh usable, and 265.27kWh yields 238.79kWh usable.

What is the cycle life and warranty?

 ≥8,000 cycles at 90% DOD recommended discharge, with a 5+5 year warranty (5-year standard + 5-year extended).

How does it handle heat? Is outdoor installation safe?

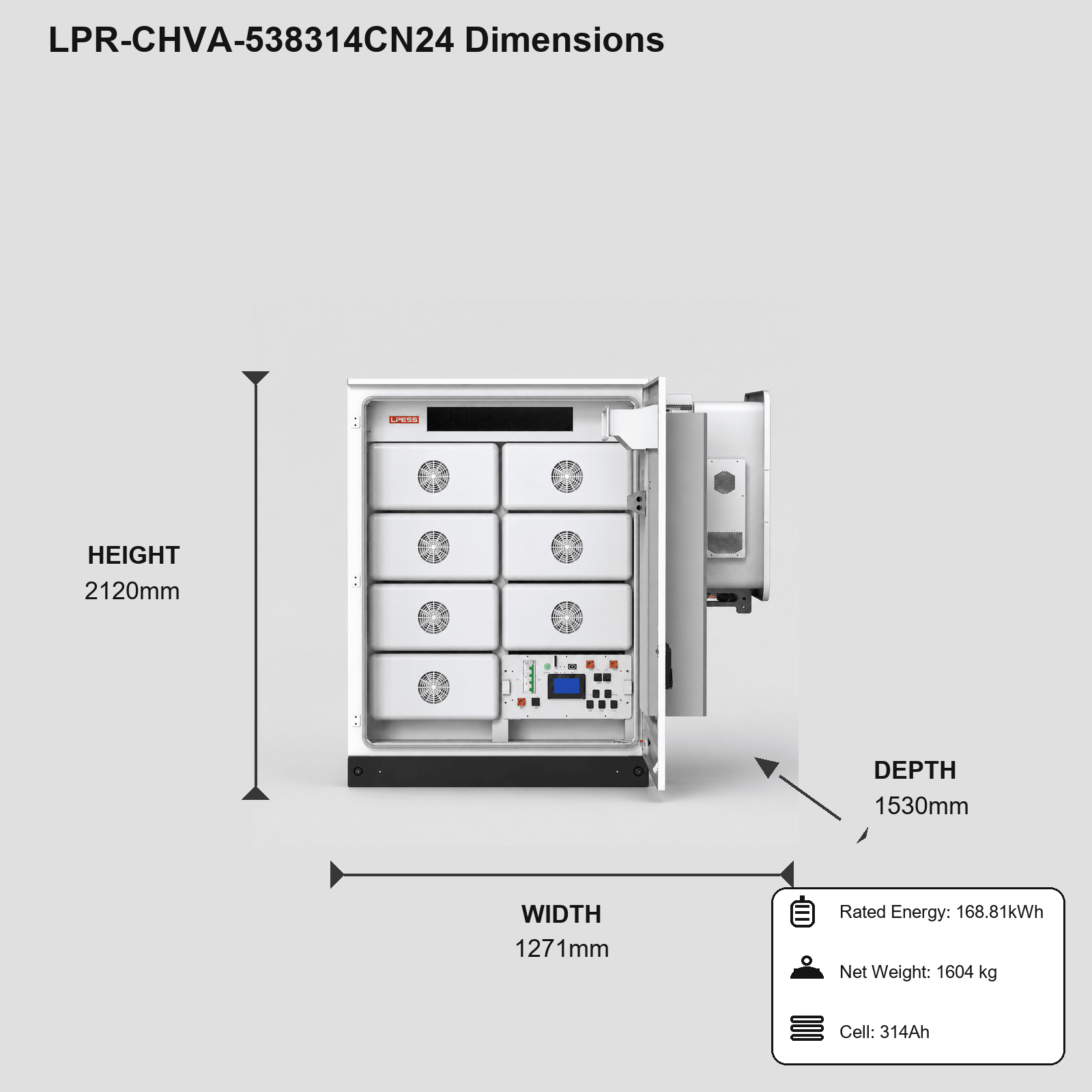

Active Air Conditioner + Fan Cooling maintains -20°C to +60°C operation in an IP54-rated integrated outdoor cabinet (1271×1530×2120mm). Designed for direct outdoor deployment.

What communication protocols are supported?

CAN and RS485, compatible with mainstream C&I inverters and EMS/SCADA platforms. Certified CE / UN38.3 / MSDS.
